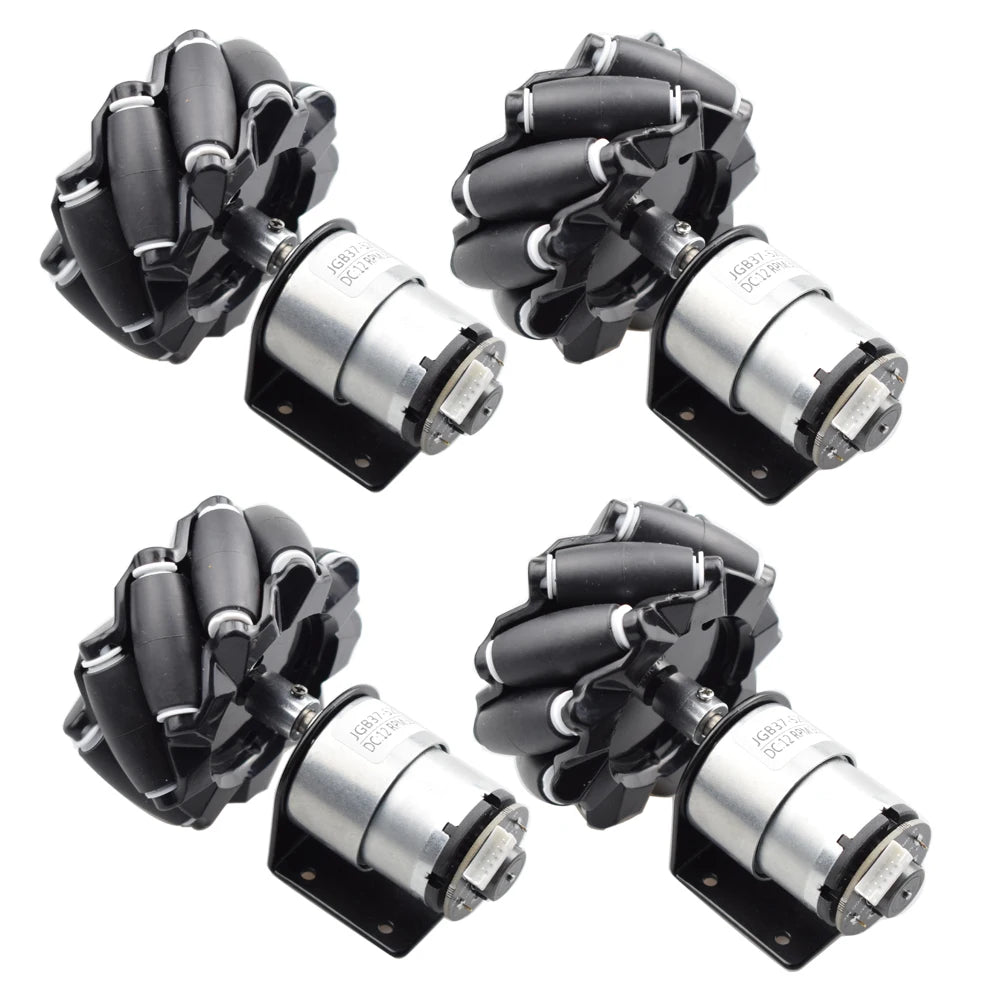

15KG Load 80mm Omni Mecanum Wheel with 4pcs 12V DC Speed Encoder Motor for Arduino Raspberry Pi DIY Robot Car STEM Toy Parts
15KG Load 80mm Omni Mecanum Wheel with 4pcs 12V DC Speed Encoder Motor for Arduino Raspberry Pi DIY Robot Car STEM Toy Parts
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Recommend Age: 14+y
Hign-concerned Chemical: None
Is Electric: No battery
Origin: Mainland China
Warning: none
Model Number: Mecanum Wheel Motor
Power Source: Electric
Theme: Transportation
Feature 1: 15KG Load

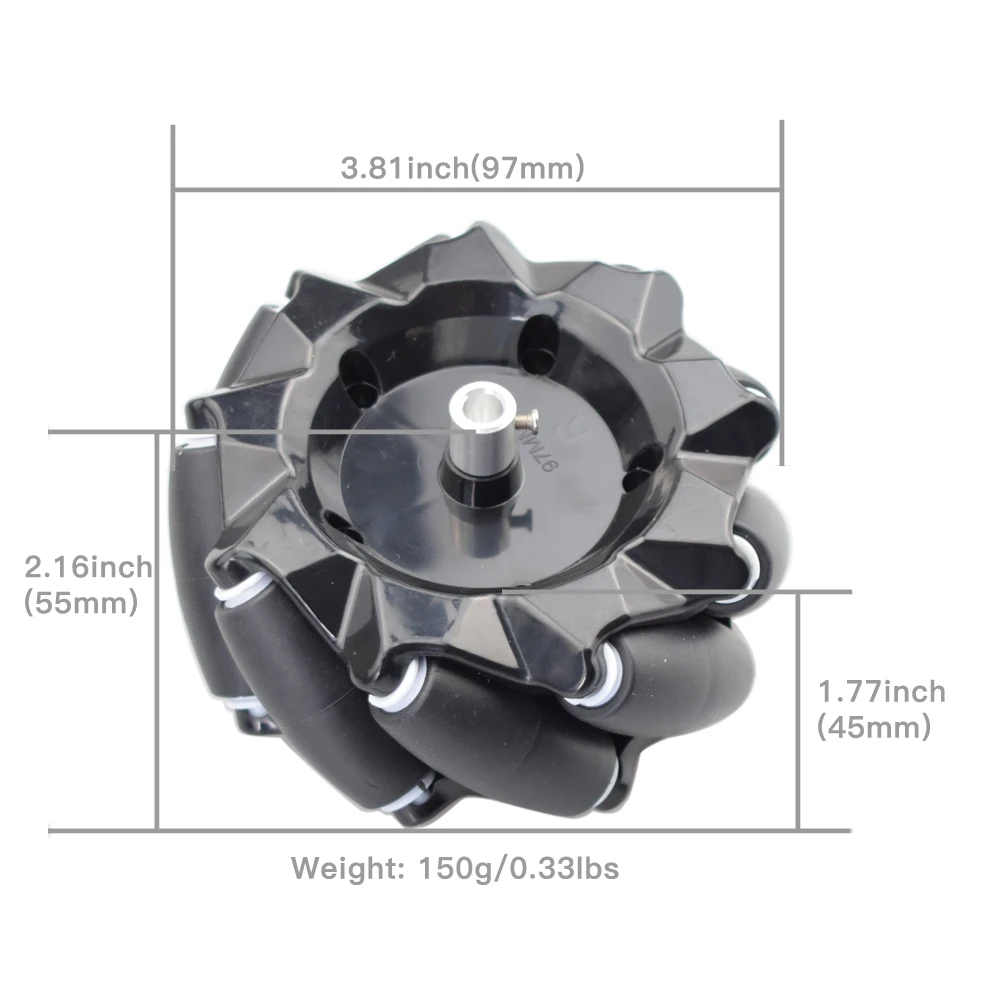

Feature 2: 80mm Omni Mecanum Wheel
Feature 3: with 4pcs 12V DC Speed Encoder Motor
Feature 4: DIY Robot Car
Feature 5: ROS car chassis
Feature 6: 6 dof arm chassis
15KG Load 80mm Omni Mecanum Wheel with 4pcs 12V DC Speed Encoder Motor for Arduino Raspberry Pi DIY Robot Car STEM Toy Parts
Package Included:

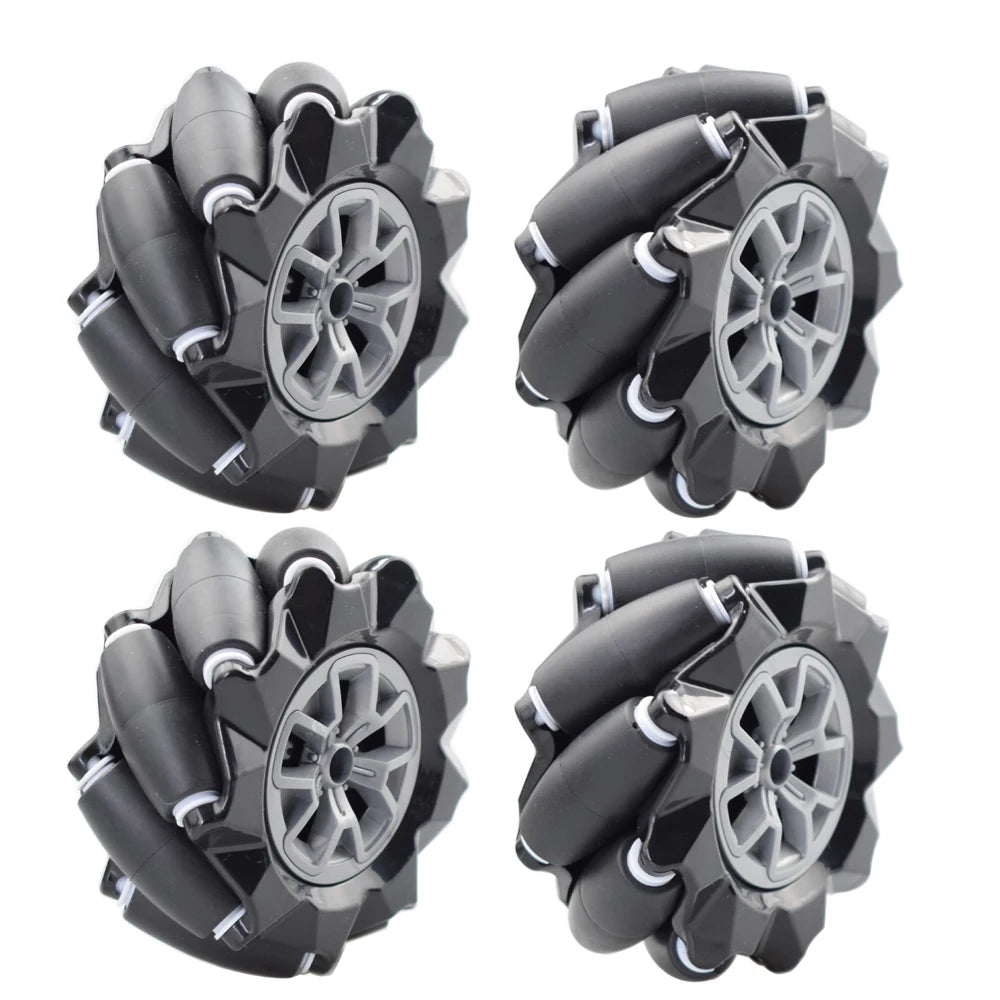

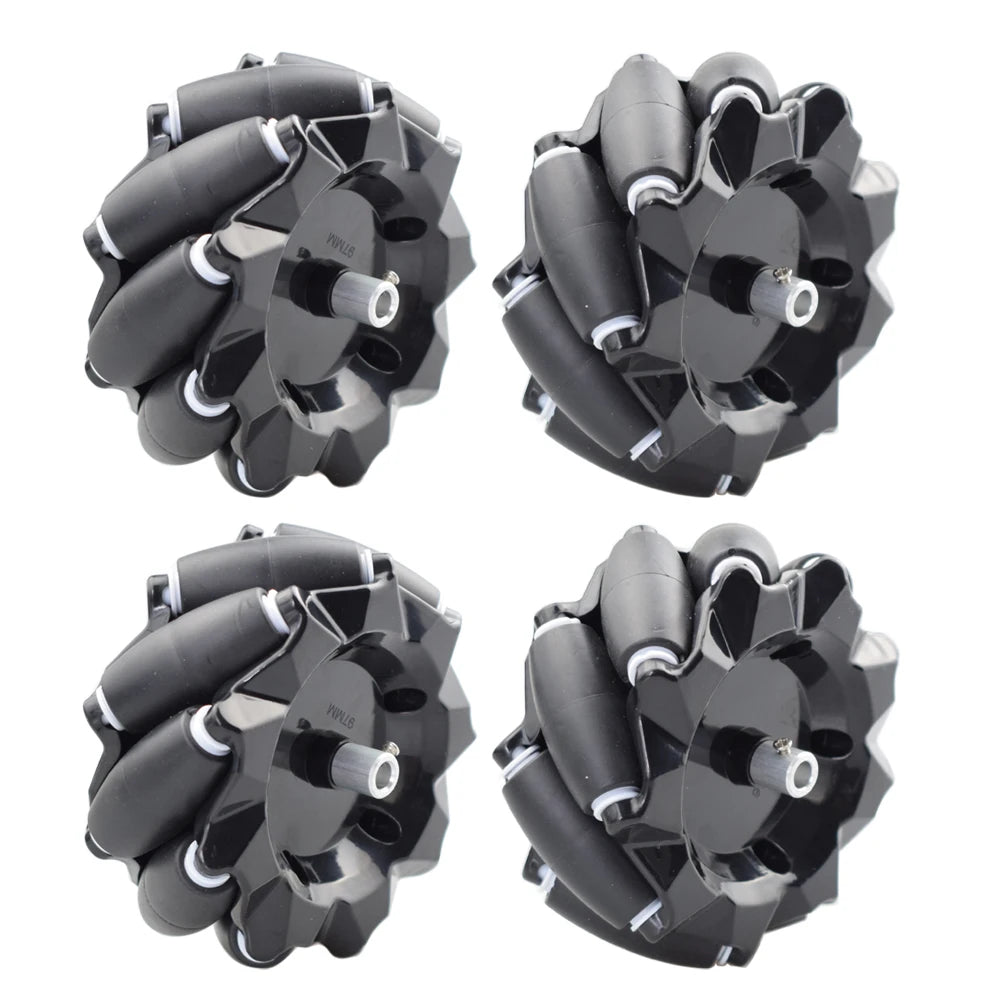

4pcs 80mm mecanum wheel
4pcs couplings

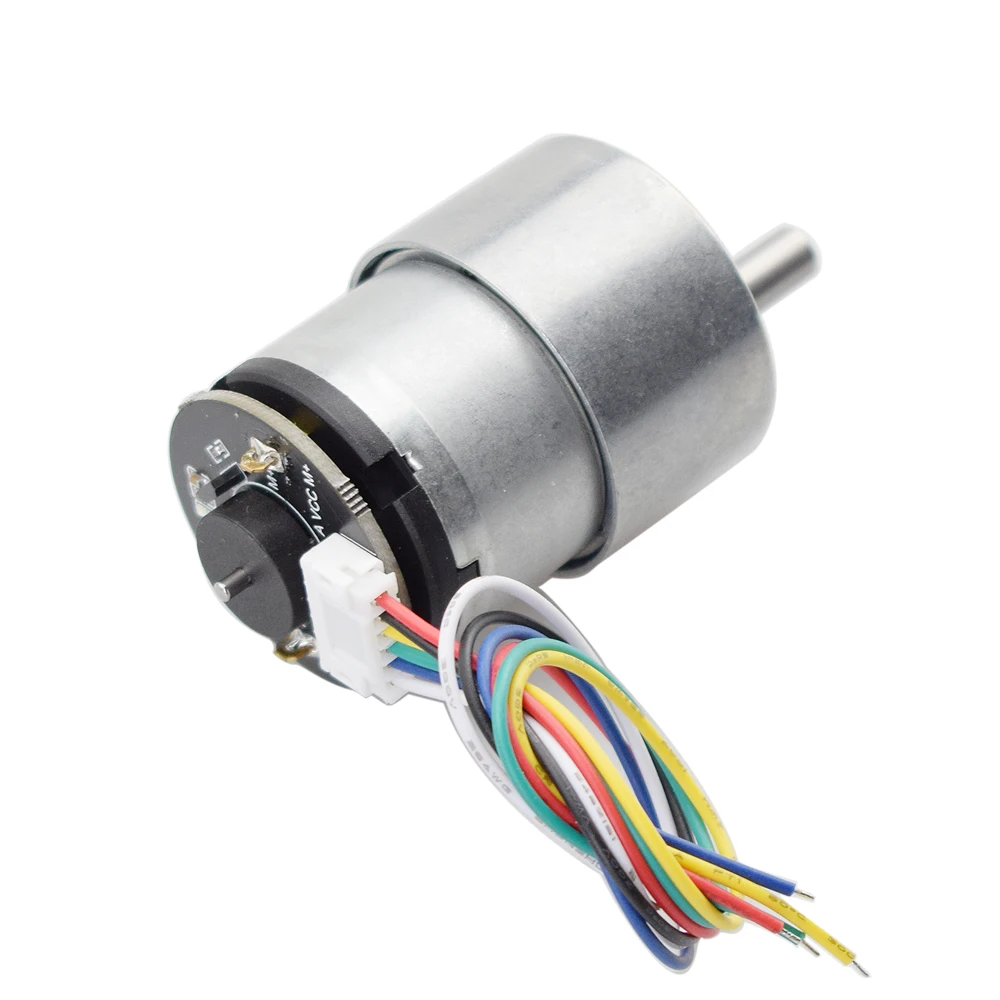

4pcs 12V dc motor with encoder
4pcs motor bracket
4pcs motor cables
screws

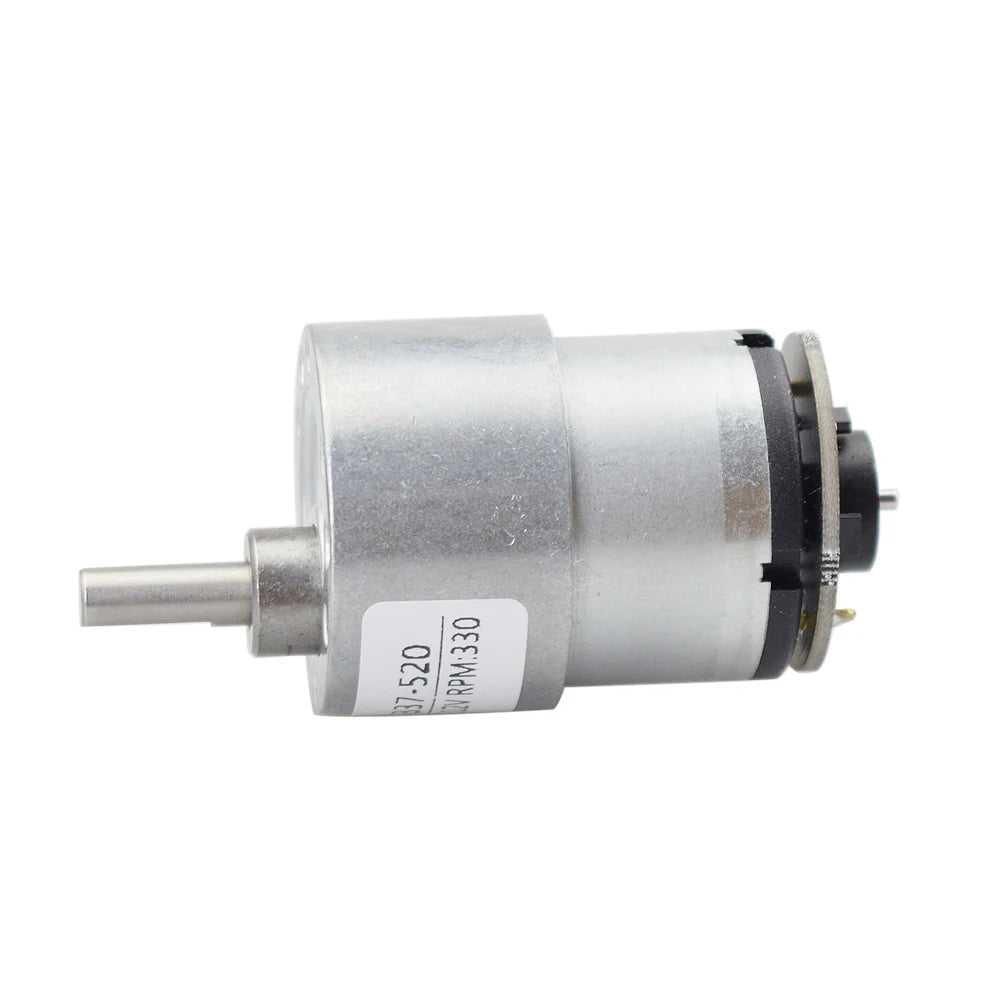

Motor Parameters:
No-load current: 120mA
Rated torque: 3.5KG.CM
No-load speed: 330rpm
Rated speed: 250rpm
Rated current: 1A
Maximum torque: 5KG.CM
Stop current: 2.3A

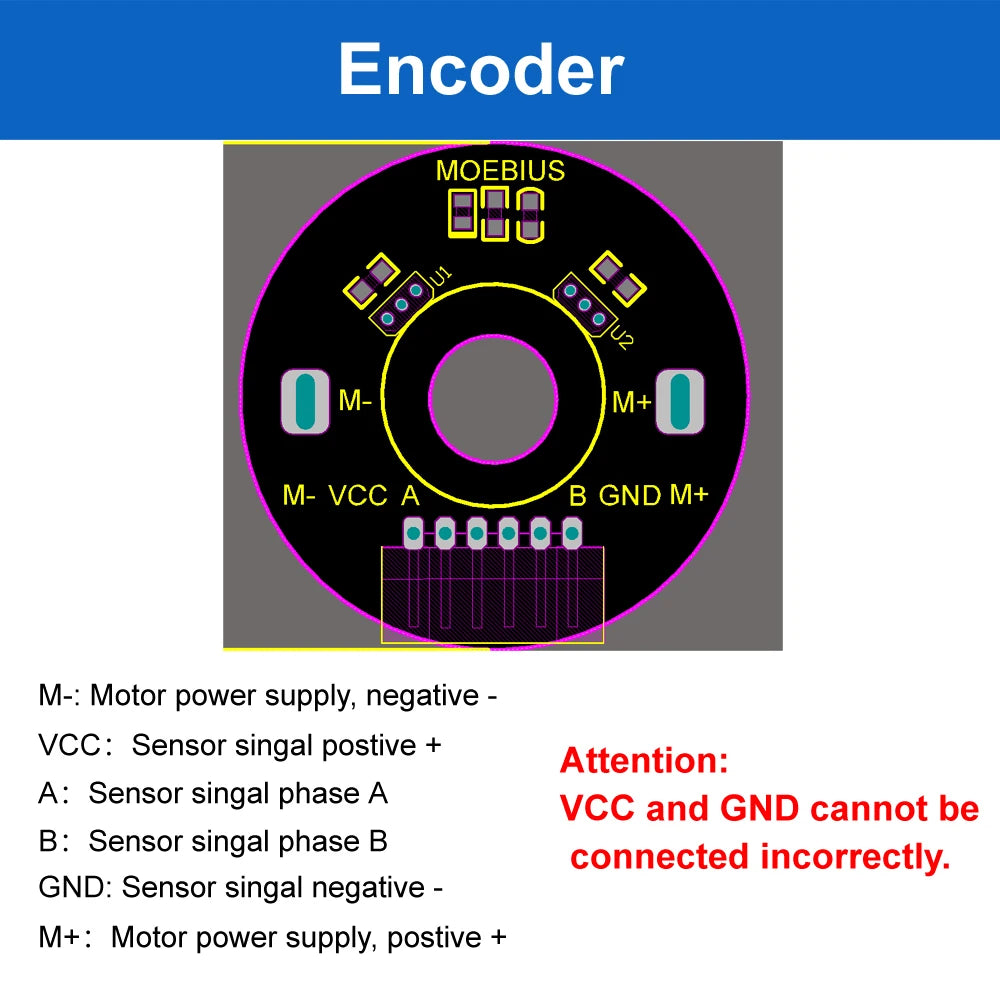

Encoder Parameters:
Type: AB phase incremental hall encoder
Wire Speed: 360
Supply power: 3-5V
Interface Type: PH2.0mm
Function: Speed Feedback.
Features:
This Mecanum wheel can be made to move in any direction and turn by varying the direction of each wheel.
With All-metal gearbox, 4pcs 12V 330rpm DC decelerate motors with encoder.
4pcs can load weight 15KG
Free arduino source code.
