SPECIFICATIONS

Name: Huepar laser level with tripod

Laser Color: Green Beam

Feature: Full Accessories

Style: Huepar 360 Laser Level with Tripod HM03CGT

Material: Plastic and Metal

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Leveling / Compensation Range: ±3°

Leveling Time: 2s

Power Source: 3.7V / 4000mAh Built-in Li-ion Battery

Tripod Height: 1.3 Meter

Brand Name: Huepar

Model Number: HM03CGT

Size: 43*27*11CM

Measurement Model: 12 lines

Hign-concerned Chemical: None

Precision: ±3mm/10m

Origin: Mainland China

Certification: CE

Certification: FCC

Certification: RoHS

Type: Vertical & Horizontal Lasers

Wavelength: 505nm-520nm

Choice: yes

semi_Choice: yes

Huepar Laser Level 360° with Tripod, Self Leveling Rechargeable Laser Level for Construction and Picture Hanging, with Pluse Mode for Outdoor, Hard Carry Case, 1.27M Tripod, Glasses, Target Plate

Huepar 3 x 360° Green Laser Lines Specifications

Projection:12 Lines 3D Green Laser Lines

Laser Class:Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength:505-520nm

Accuracy:±1/9 Inch at 33 Feet

Leveling / Compensation Range:±3°

Leveling Time:2s

Working Distance:98 feet (100 LUX), 200 feet with Huepar Laser Detector LR-6RG / LR-5R

Power Source: 3.7V / 4000mAh Built-in Li-ion Battery

Reference Operating Time:About 8 hours with all laser beams on

Mount Size:1/4"-20

Magnetic Bracket Mount Size:1/4"-20 & 5/8" - 11

IP Rating:IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range:14℉ ~ 122℉ (-10℃~ 50℃)

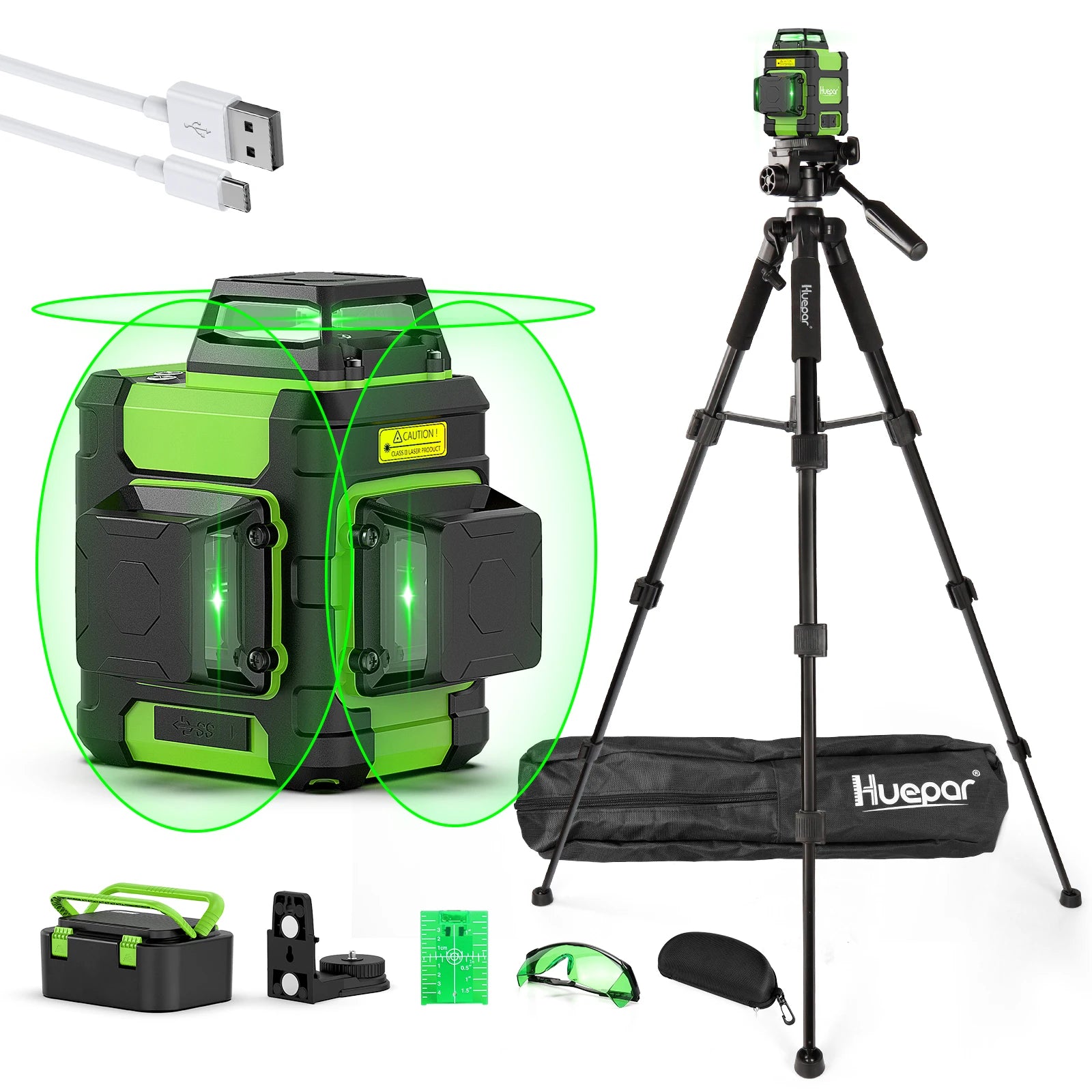

Package contents:

1 x Huepar HM03CG Green Laser Level

1 x 360° Magnetic Pivoting Base PV9

1 x 1.27m Tripod

1 x Green Glasses (With glasses case)

1 x Type-C Power Cord 1 Meter

1 x Green Target Plate

1 x Multilingual User Manual

1 x Tripod Cloth Bag

1 x Hard Case for Laser Level

Features of HM03CGT

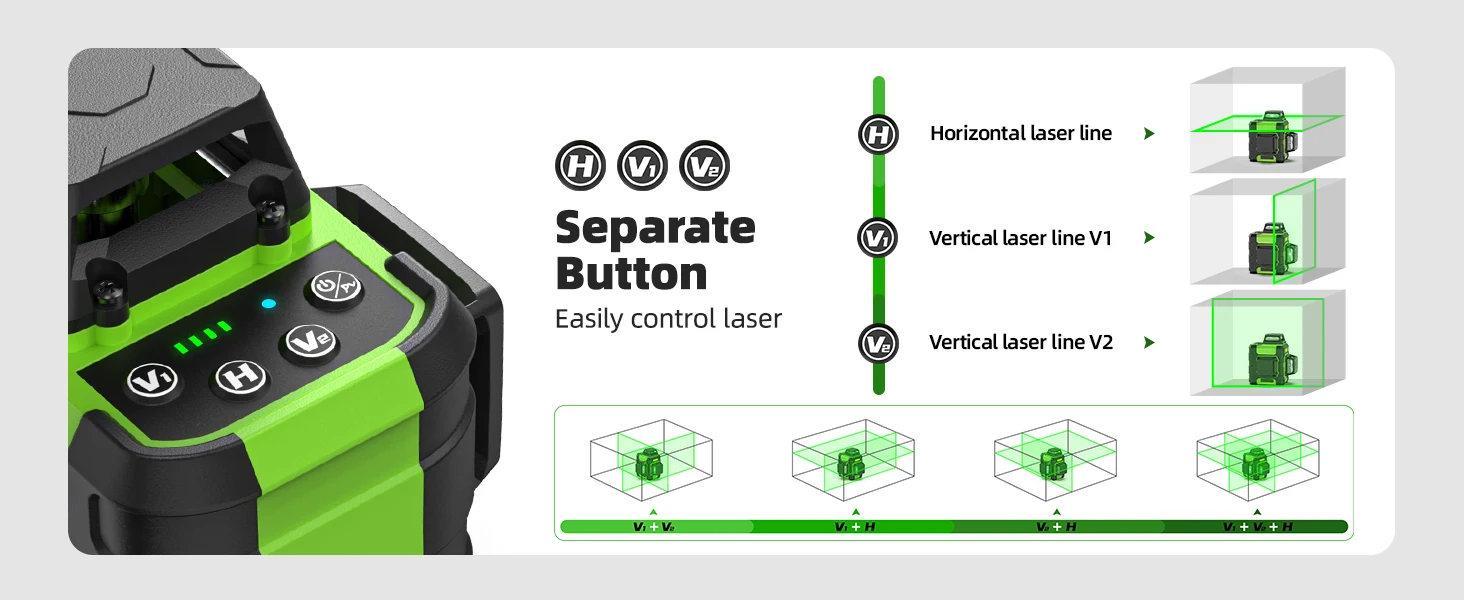

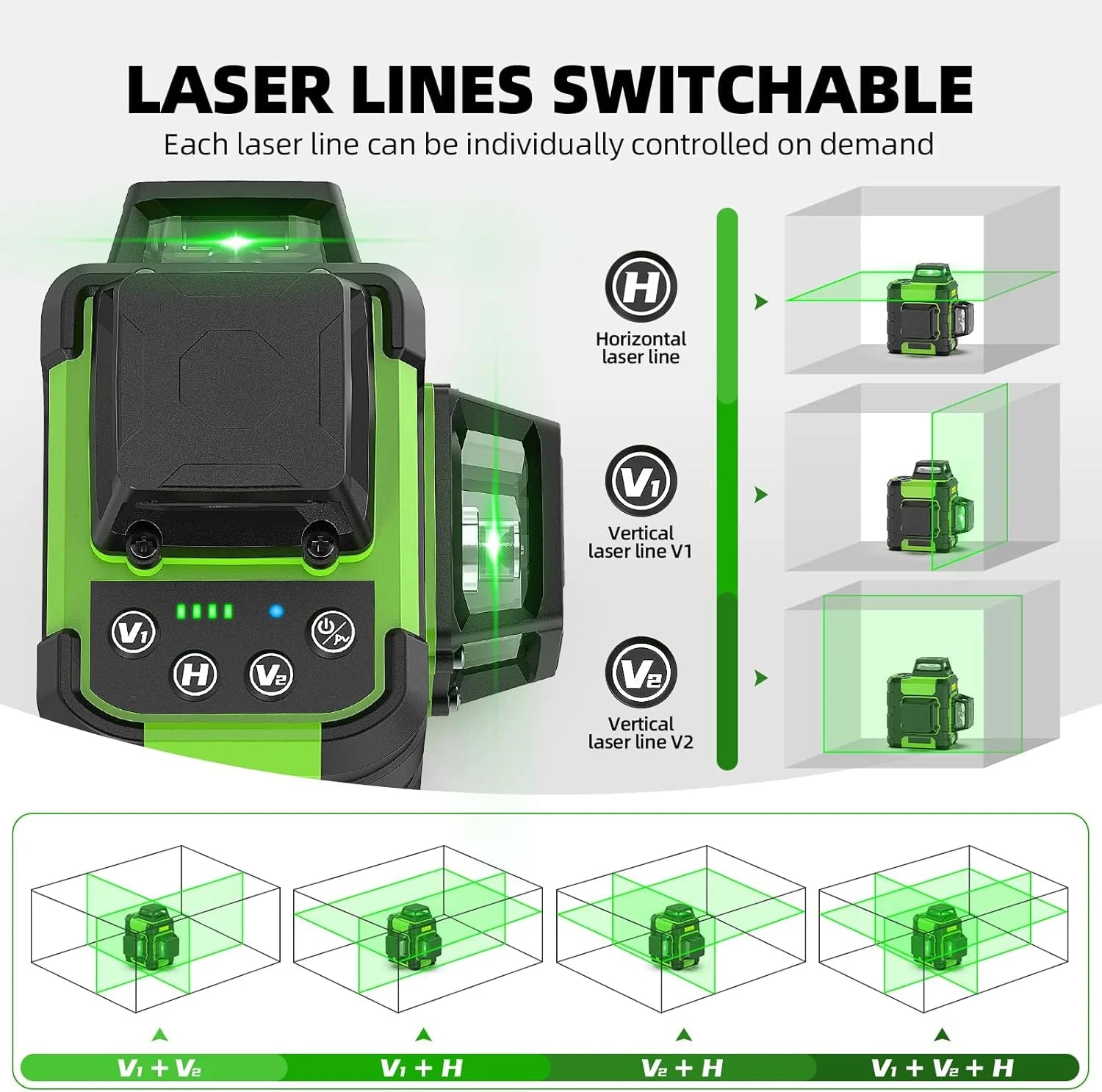

3*360° switchable laser lines

Huepar 3D laser level has one 360° horizontal beam and two 360° vertical beams, which can cover various positions in the room. The control surface matches the "H", "V1" and "V2" laser line buttons, which allow users to control one laser line respectively. You can easily switch to any laser line you want. The laser of the machine reaches laser safety level 2 (IEC/EN60825-1/2014), <1mW.

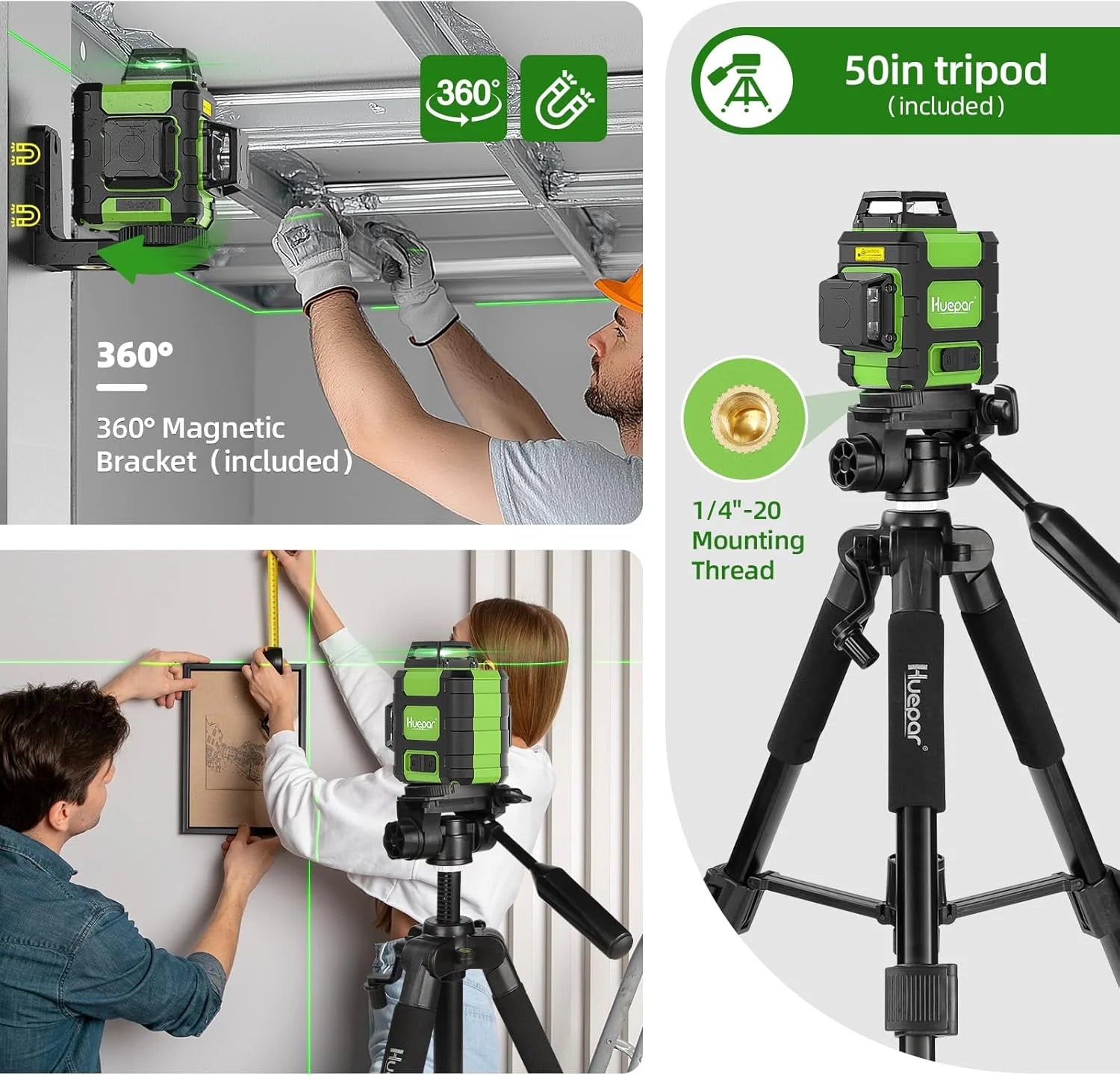

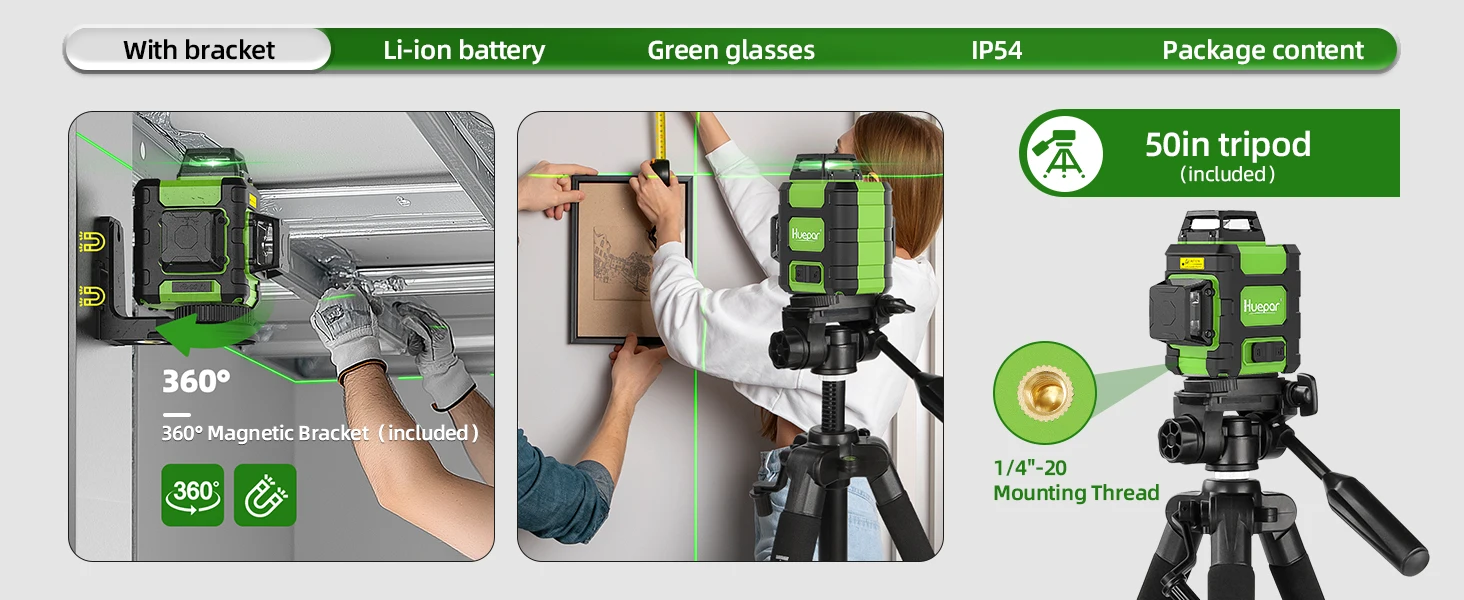

Tripod and Magnetic Mount Included

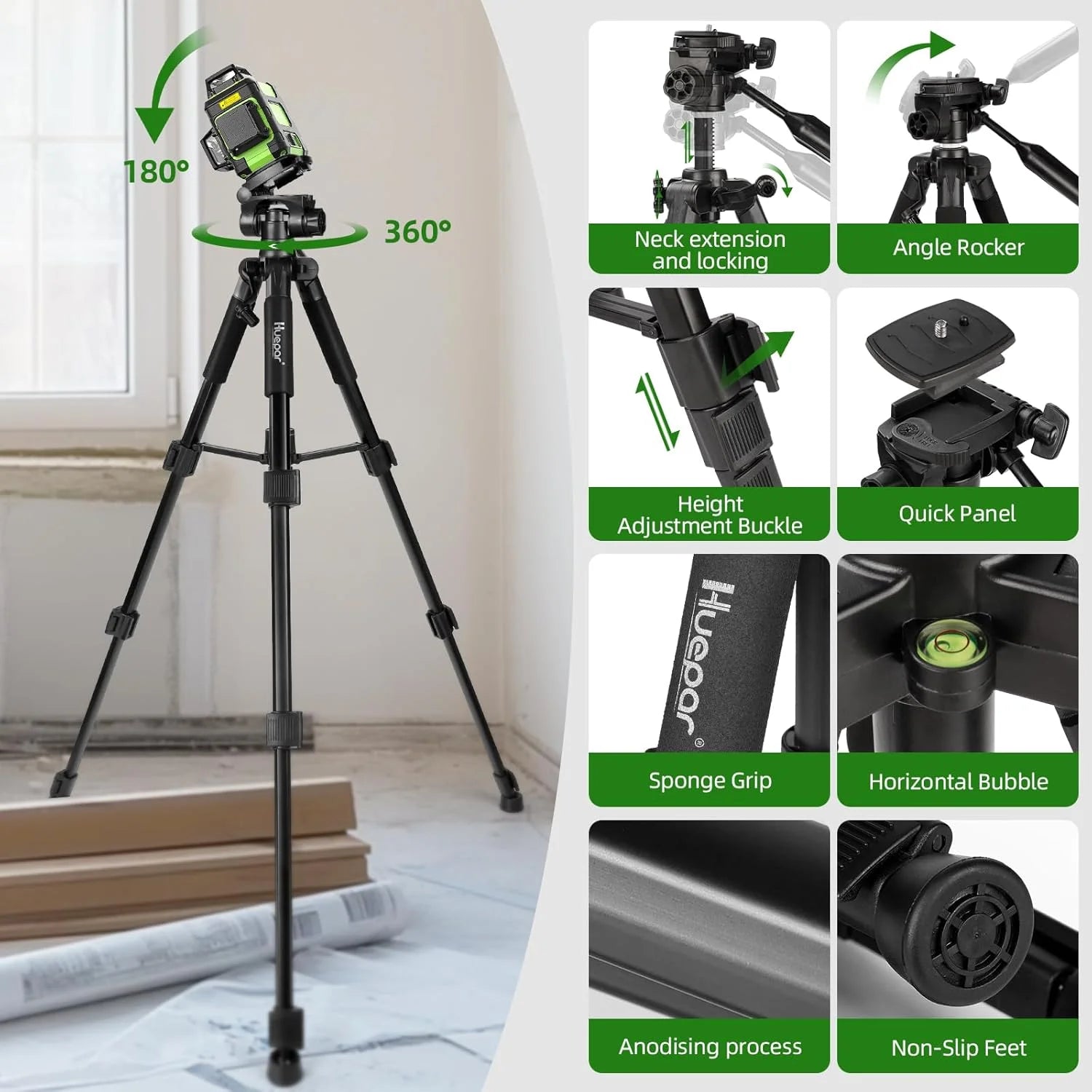

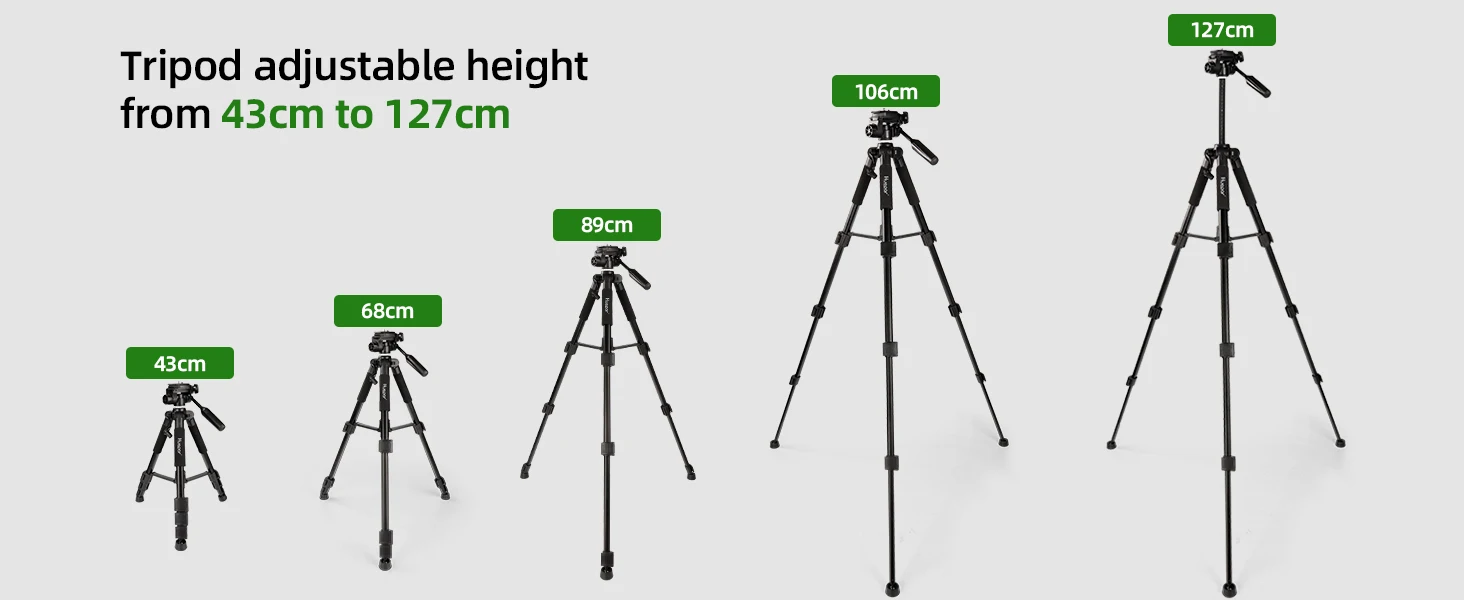

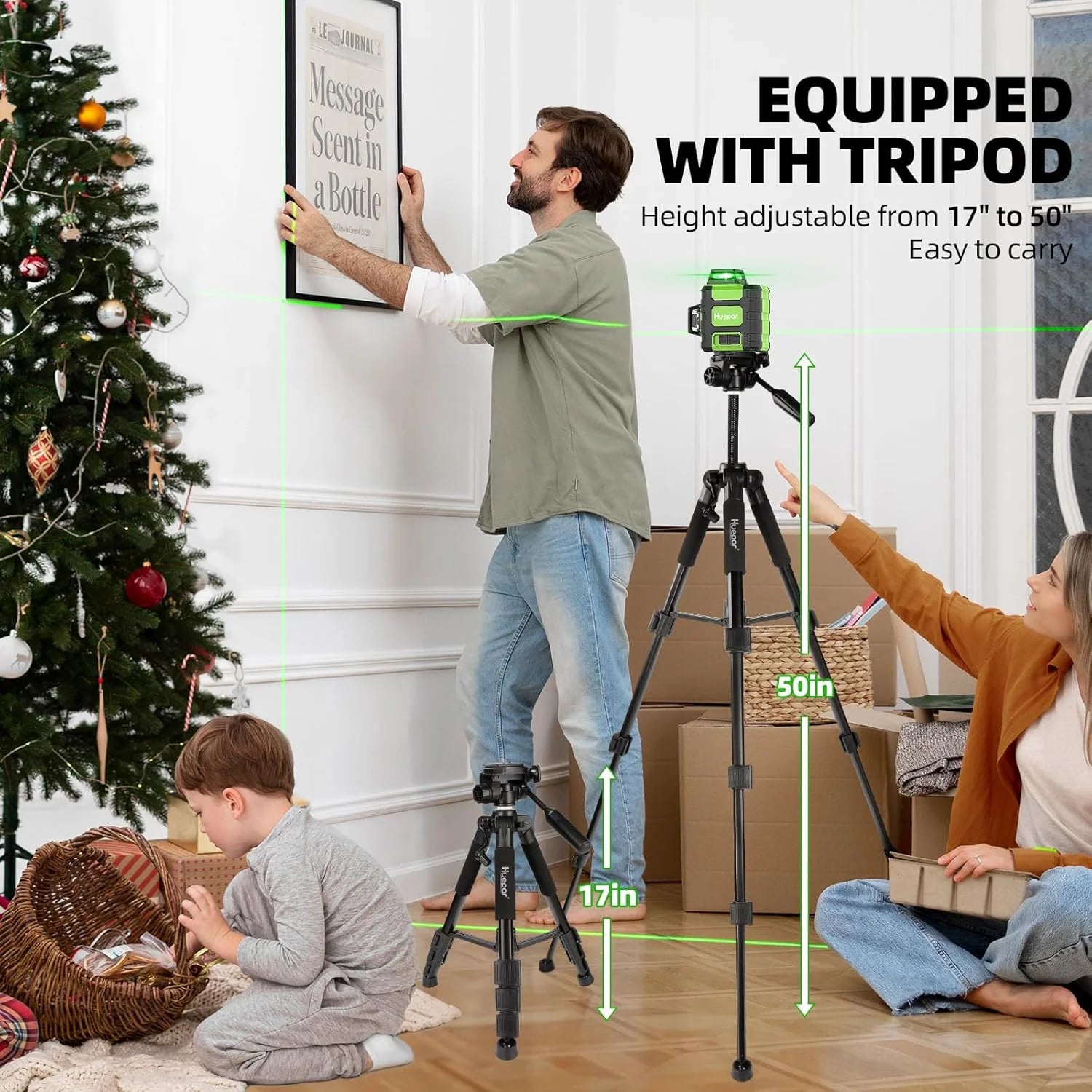

 The 1/4"-20 thread on the bottom of the laser level fits the high-quality tripod and 360° magnetic mount included in the set, as well as other standard tripods and mounts. The sturdy and versatile laser level tripod included in the set can be extended from 17" to 50", helping you adjust the position and height of the laser line level. The magnetic mount included in the set can rotate 360 degrees and firmly adheres to metal surfaces, allowing users to work on rooftops or high places.

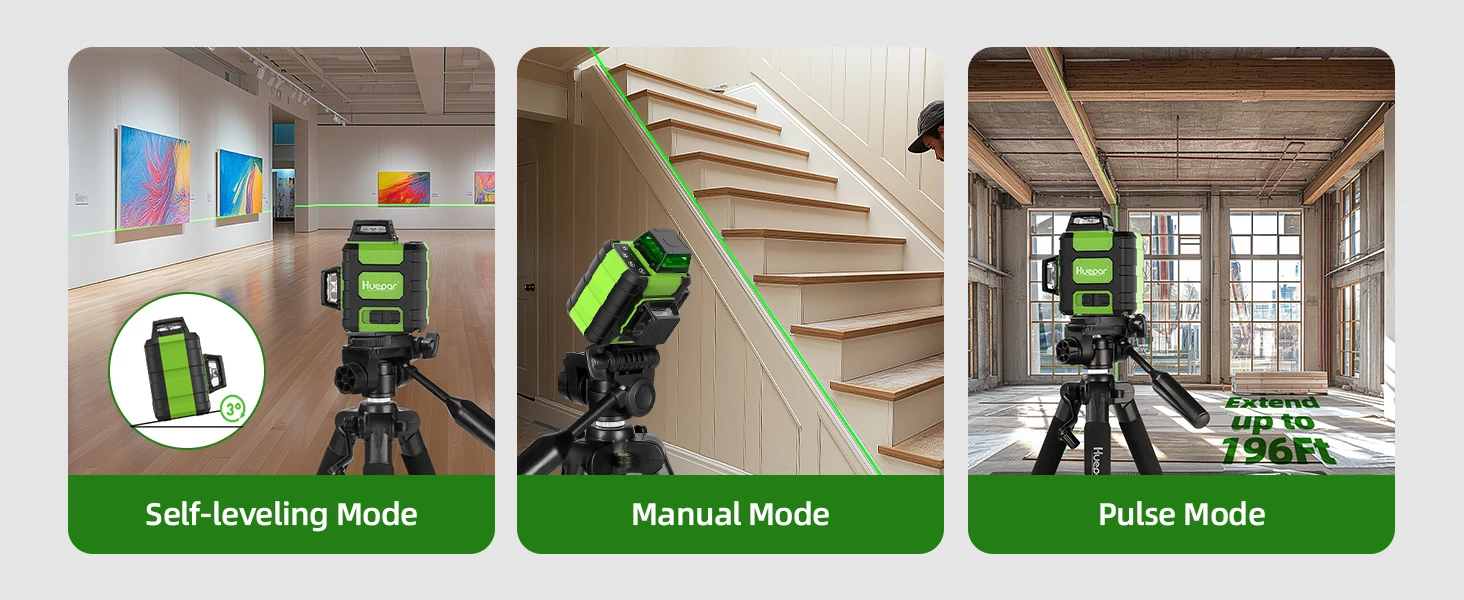

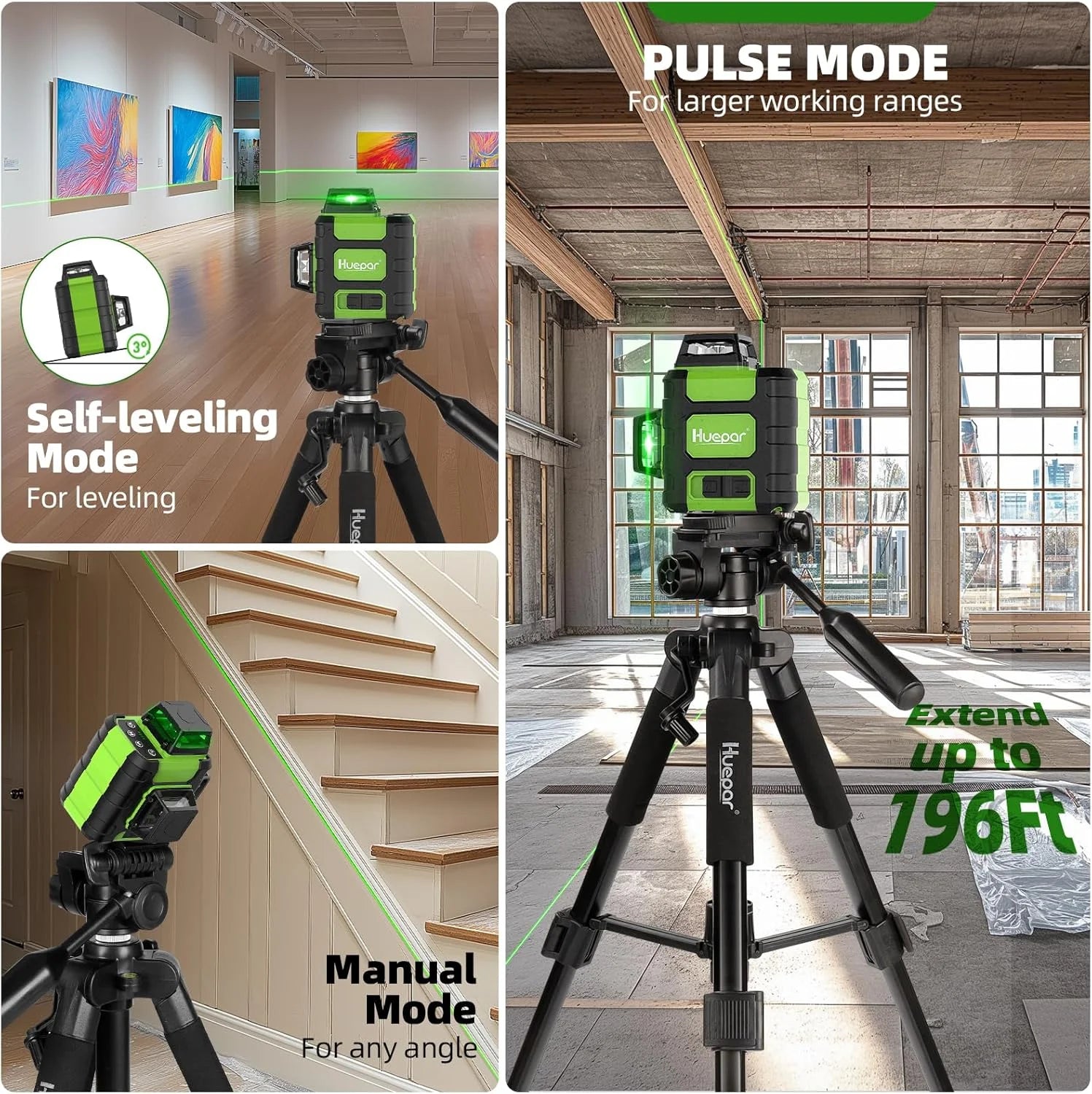

Auto-leveling and Manual Mode

For Auto-leveling mode: Unlock the pendulum, the Huepar 360 Auto-leveling Laser Level will project a vertical or horizontal laser line when the tilt angle is less than 3°, and the laser will continue to flash when it exceeds 3°. The accuracy is ±1/9" at 33 feet. Lock the pendulum and switch to manual mode, and the laser level will project a straight line to meet your alignment needs at different angles.

Pulse mode, can match the receiver to work

Pulse mode extends the working distance of the laser level from 98 feet to 196 feet. In pulse mode, the laser lines flash at a very high frequency, making them detectable by the laser receiver. It is ideal for outdoor use where laser visibility is low or the working distance exceeds 98 feet. If you need to buy a laser receiver, please choose the Huepar brand laser receiver.

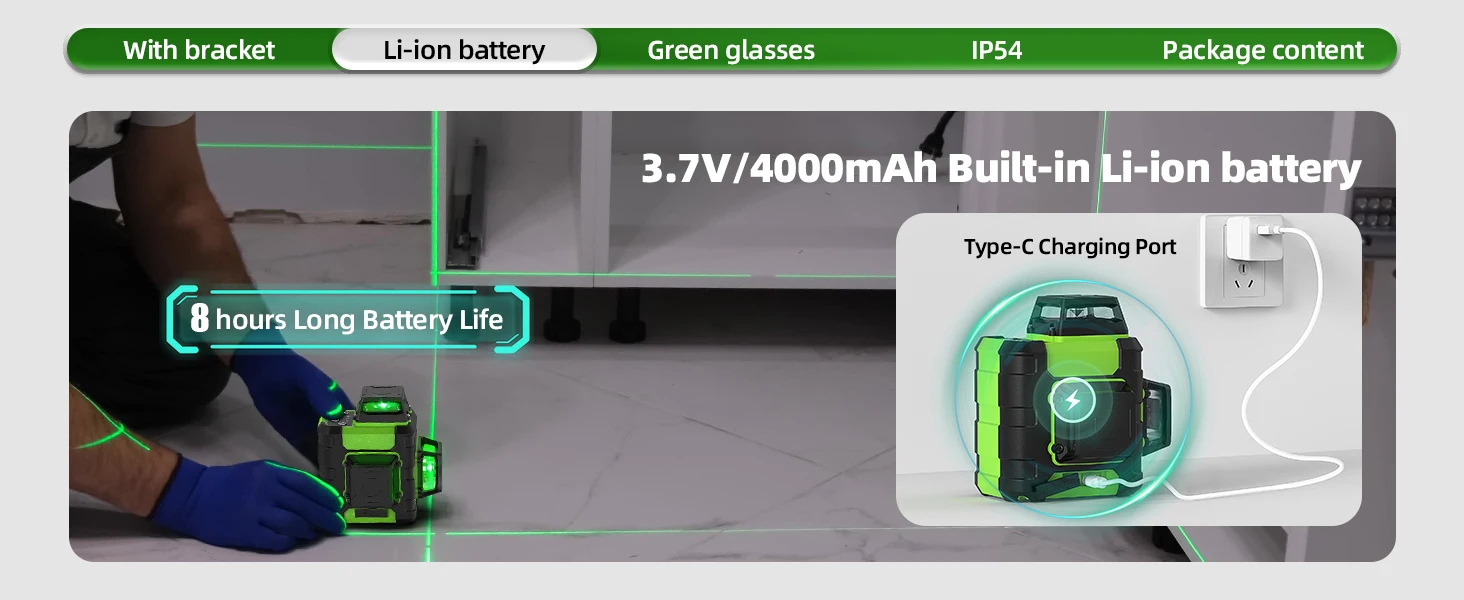

Type-C Charging Port and Durable Battery:

Huepar HM03CG Laser Level is powered by a built-in 4000mAh 3.7V Li-ion rechargeable battery that provides 8 hours of continuous running time. 4 battery indicators on the keypad allow users to know the current battery volume and charging protection helps prevent overcharging. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

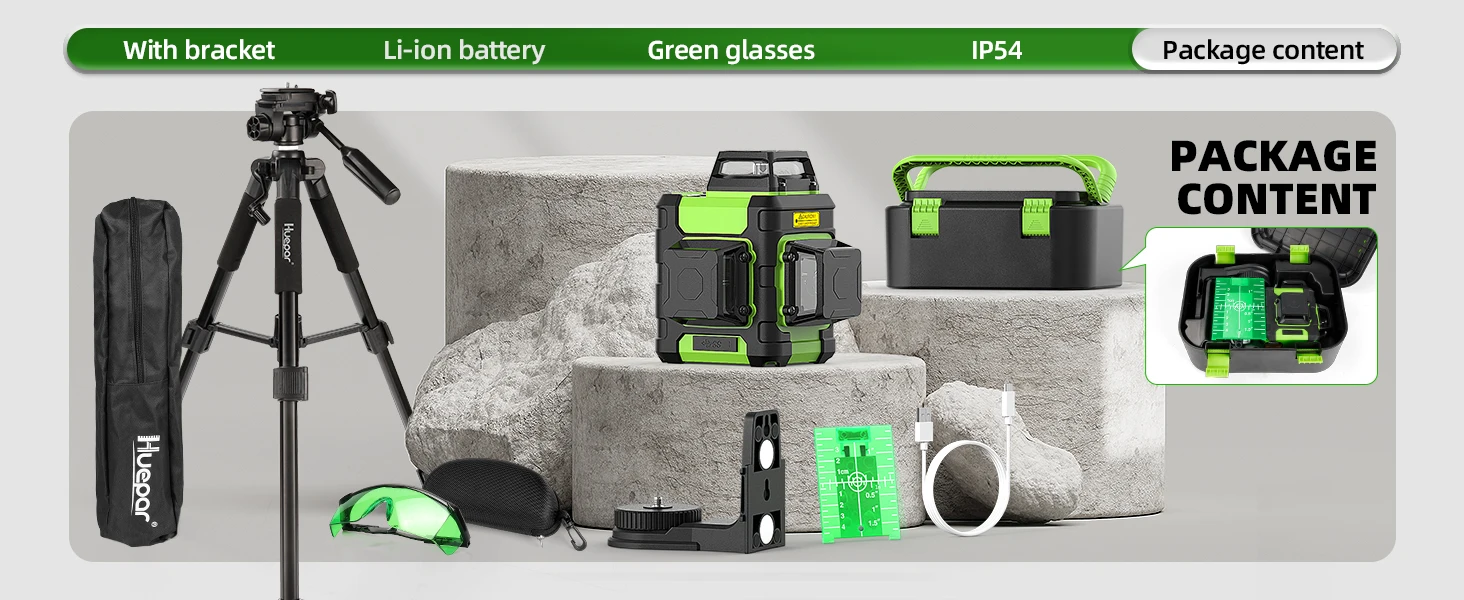

Rich accessories

In addition to the HM03CG 360 laser level with 50-inch tripod and 360 magnetic bracket, the set also includes a tripod storage bag, green glasses, glasses case, target board, storage hard case for the laser level and small accessories, and a power cord. It can easily handle a variety of home improvement projects, such as installing ceilings or cabinets, laying tiles and floors, installing electrical wiring, plumbing, door and window frames, and hanging pictures on the walls.

Portable design & IP54 Materials :

IP54 waterproof design

The IP54 materials protects the unit from water splashes, dust, and construction debris and ensures you work well in hazardous working conditions. The kit has a hard carry case for much more convenient carrying and storing the laser tool. We provide a 24-Month after-sale service and lifetime technical support. Please contact us freely if you have any concerns.
