SPECIFICATIONS

Brand Name: NoEnName_Null

Recommend Age: 14+y

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Model Number: RC Mecanum Wheel Robot Car

Certification: CE

Power Source: Electric

Theme: Animals & Nature

Theme: Transportation

Theme: Fantasy & Sci-Fi

Theme: Occupations

Theme: Sports

Theme: Music

Certification: ce

Model: 5 discount big load mecanum wheel robot car kit

Product Features:

• 80mm Mecanum Wheel with 6mm hubs compatible with all DC motors with a motor shaft diameter of 6mm.

• This mecanum wheels used for Raspberry Pi 4/3B+/3,Micro:bit and Arduino Project compatible with DC motor.

• The latest mecanum wheels for omnidirectional movement and allow your robotics to not only travel forward and backward, but also side to side. Perfect for tight spaces.

• Offer source code. You learn more about how Mecanum Wheels work and how they can improve your robot's maneuverability.

• This mecanum wheel robot can bear 10kg.

What's in the box:

• Robot car kit= 1pcs Acrylic frame+ 4pcs 80mm mecanum wheel+ 4pcs 12V motor with encoder+ 4pcs motor bracket+ 4pcs motor wires+ 1 set screws

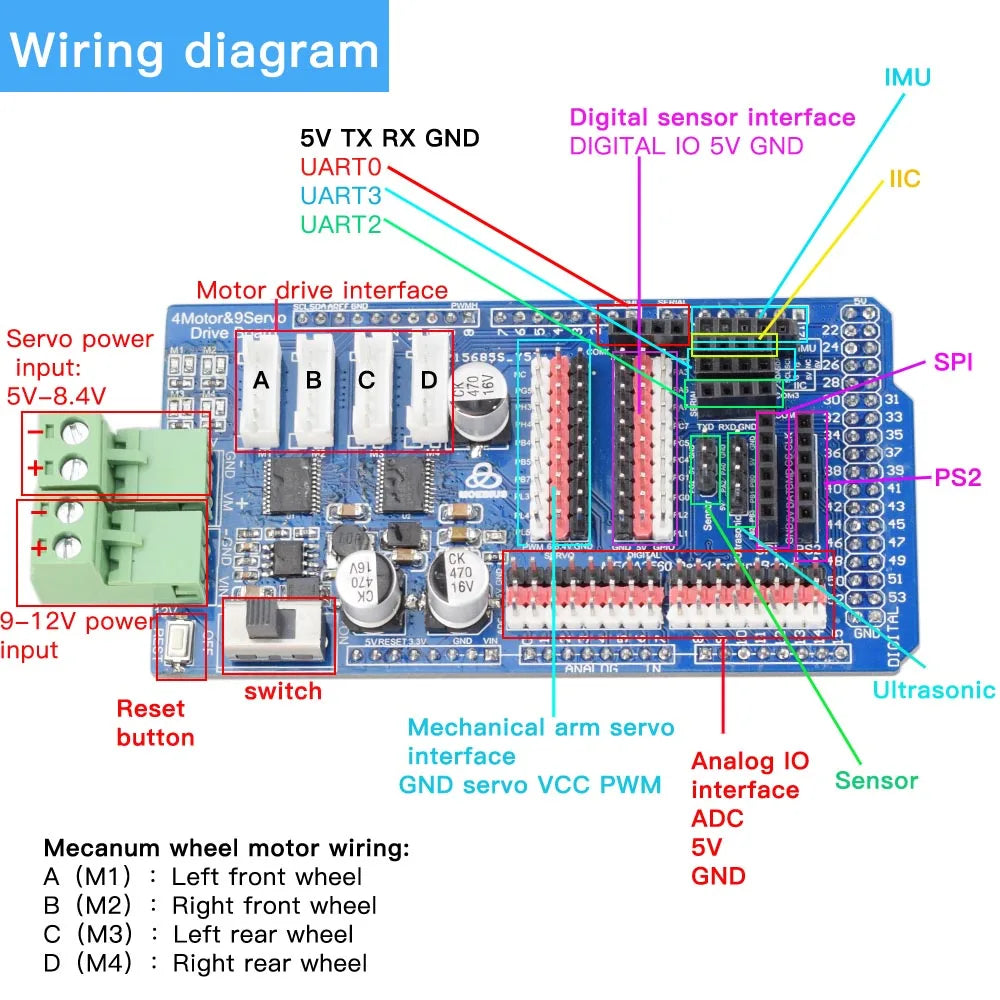

• Control kit= 1pcs mega2560 board for arduino+ 4 channel motor driver board+ 5pcs tracking module +4pcs motor cables+ 1pcs usb cable.

• RC robot car kit=PS2 control kit+Robot car kit

Features:

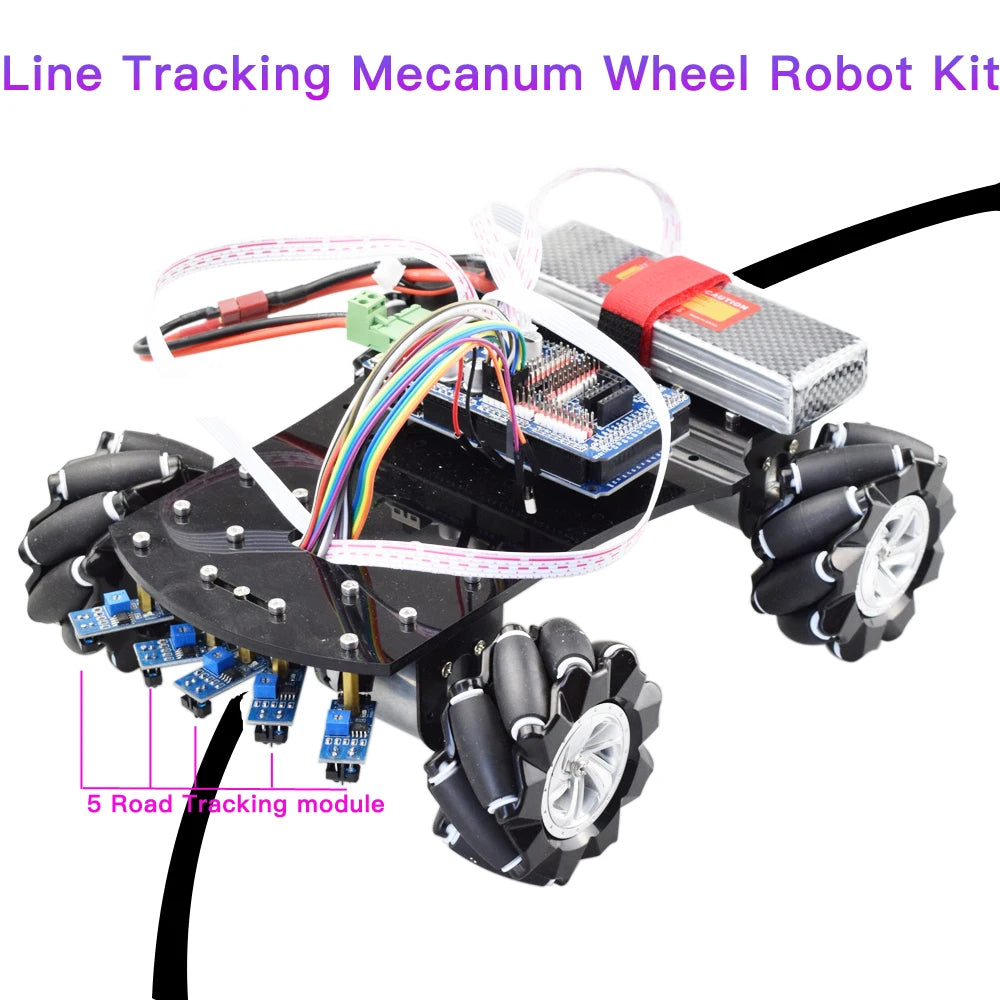

• Line tracking

• 4 wheel drive

• Mecanum Wheels

• Aluminum alloy body

• Easy to assemble

• DC motors with speed encoder

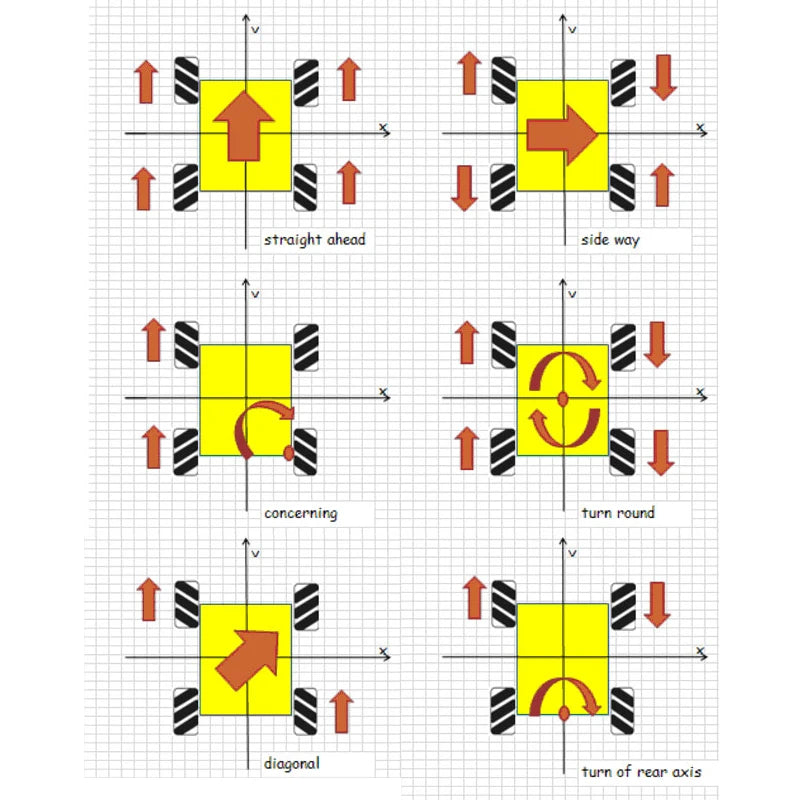

• Capable of moving forward, backward, sideway, rotation

• Free source code

The mecanum wheel robot parameters:

• Load capacity: 6-10kg

• Speed: 1.2m / s (meters per second)

• Turning radius: 0m

• Mecanum wheel material: aluminum alloy

• Base material: 3mm aluminum alloy

• Motor power: 7W

• Motor rated voltage: 12V

• Reduction ratio: 1:30

• Mecanum wheel robot kit weight: ≈3.2pounds

Note:

• Unassembled kit, please leave your mailbox to get the installation maunal.

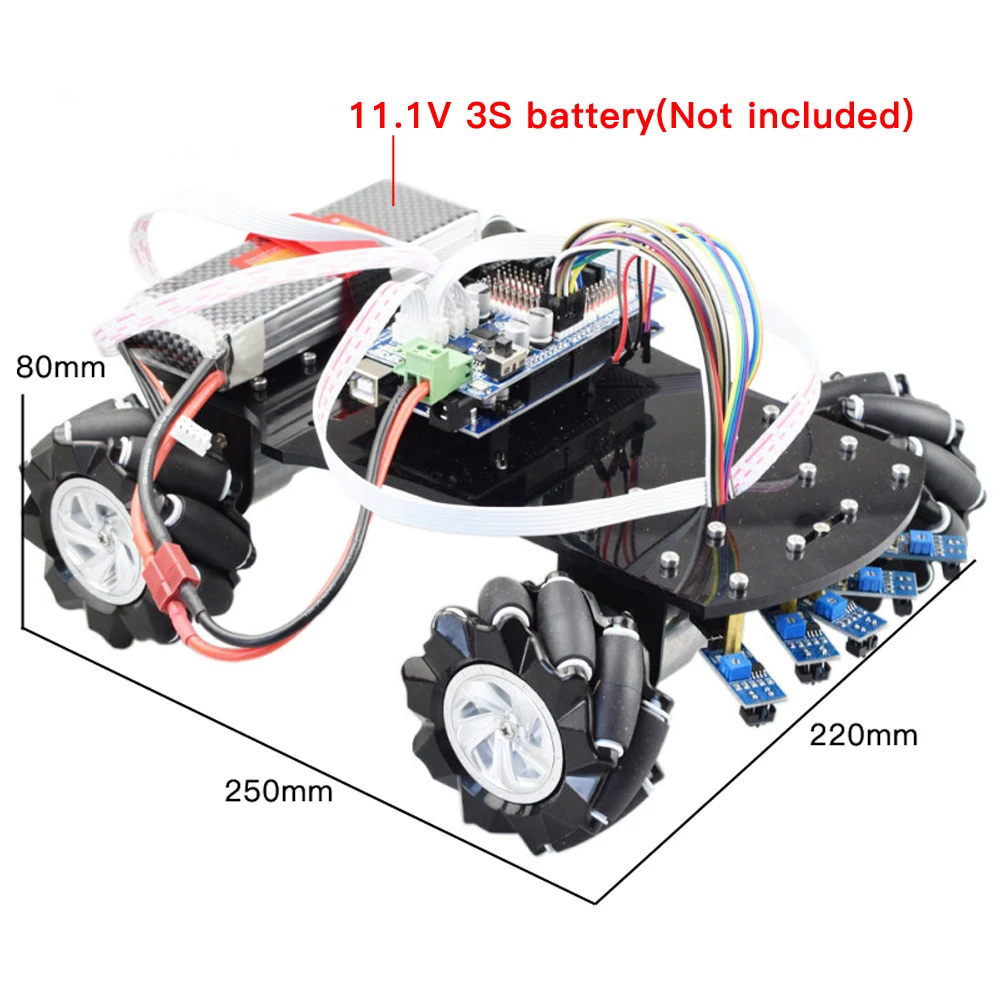

• Not included any battery.

Images:
