SPECIFICATIONS

Brand Name: Makita

Hign-concerned Chemical: None

Origin: Mainland China

Type: Line Lasers

Certification: CE

Measurement Model: 16 Lines

Plug Type: EU

Model Number: Laser level meter

Laser ray: Wavelength 532nm,green light

Horizontal/vertical accuracy: ±2mm/10m

Automatic leveling range: ±3

Waterproof grade: IP-54

Working range: about 25m in diameter

Working time: about 5 hours

Choice: yes

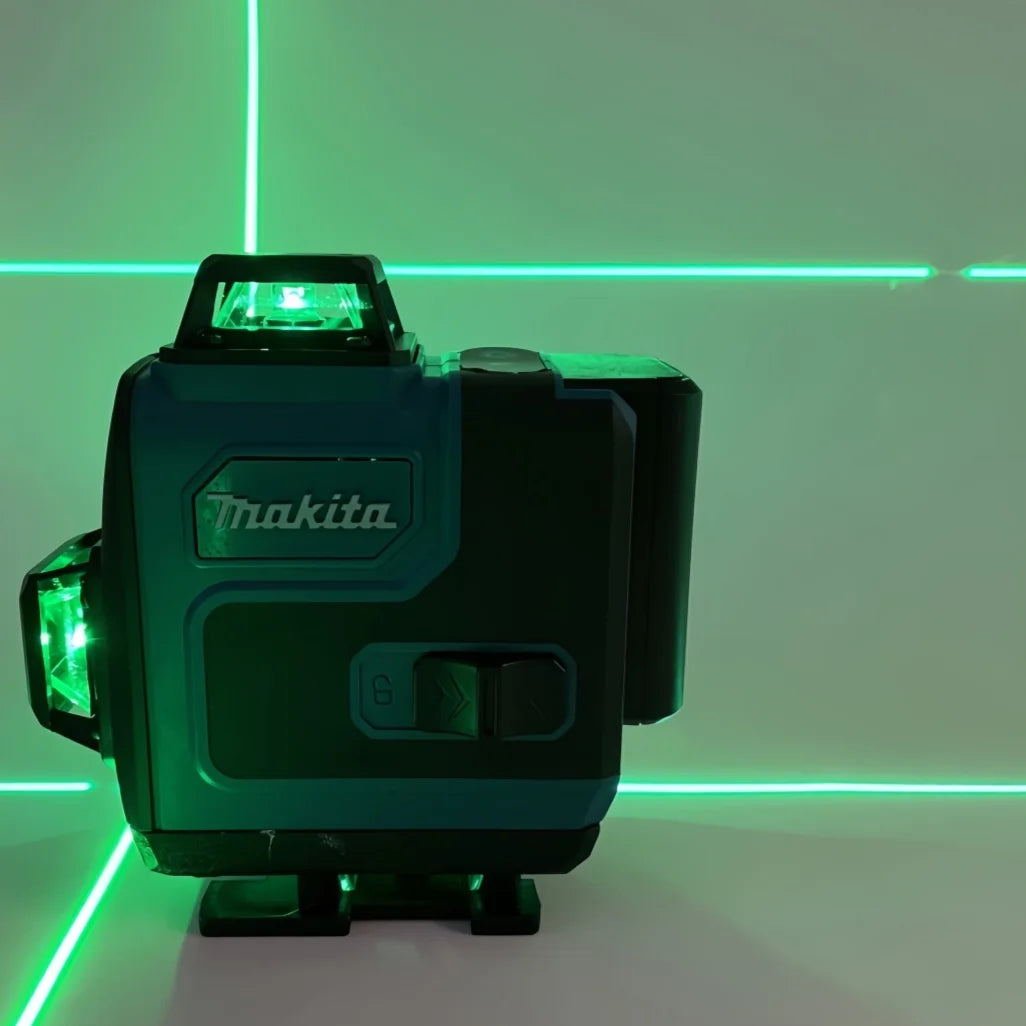

Laser ray:

360° X 4 16 lines(3D-4D)

Push the main power switch forward to the ONposition and the machine starts to work. Thehorizontal window automatically opens and produces four horizontal laser rays;

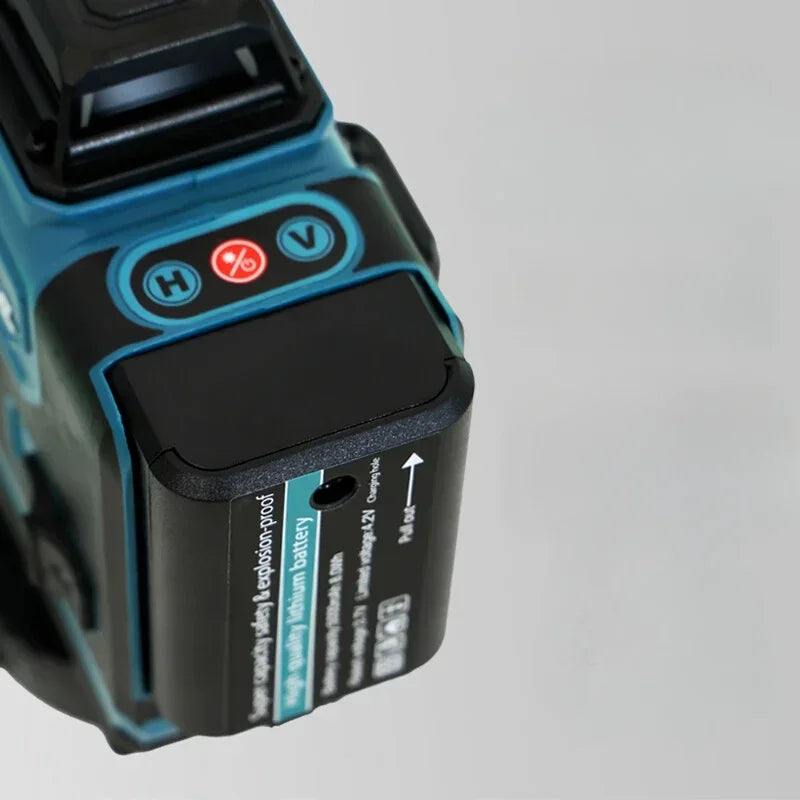

Touch H key on the touch panel to control horizontal opening and closing;

Touch the V key on the touch panel once, open a vertical window with one click (tick), repeat again, the second vertical window opens, and the third touch closues two vertical windows;

Long touch the key for more than 3 seconds, and a click(tick) will be heard, and turning on the diagonal function. At this time, you can adjust it to the angle you want without alarm or flashing.
