SPECIFICATIONS

Brand Name: EZAIOT

Wattage: <1.5W

Certification: CE

Certification: RoHS

Certification: weee

Origin: Mainland China

Hign-concerned Chemical: None

Model Number: R8C

Suitibale for: Electric/water/gas boiler heating

Choice: yes

Model Differences:

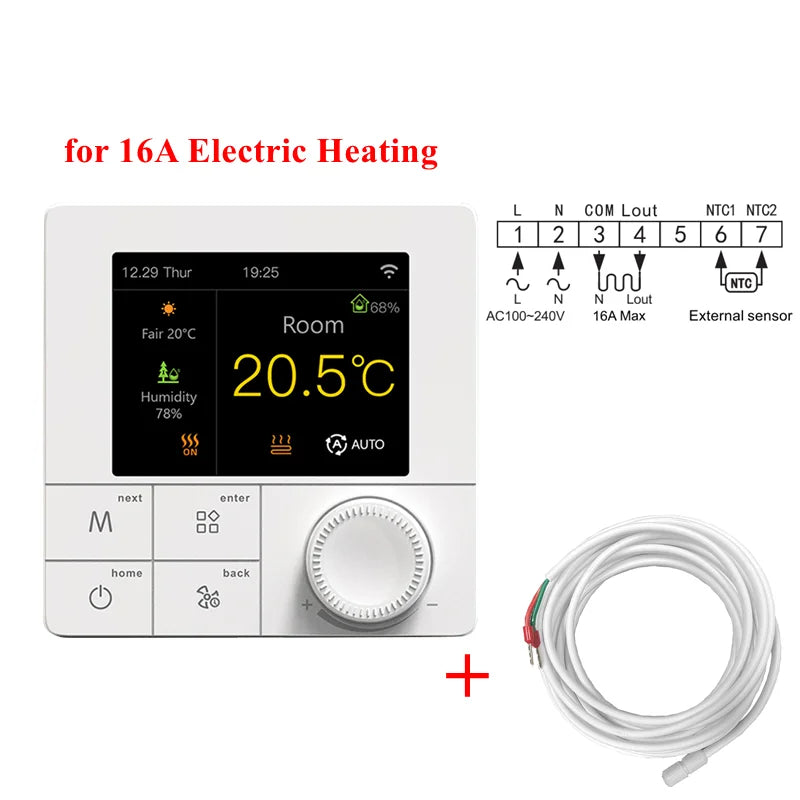

16A Electric:for electric floor heating, 16A, for controlling heating cables, heating membranes, etc.

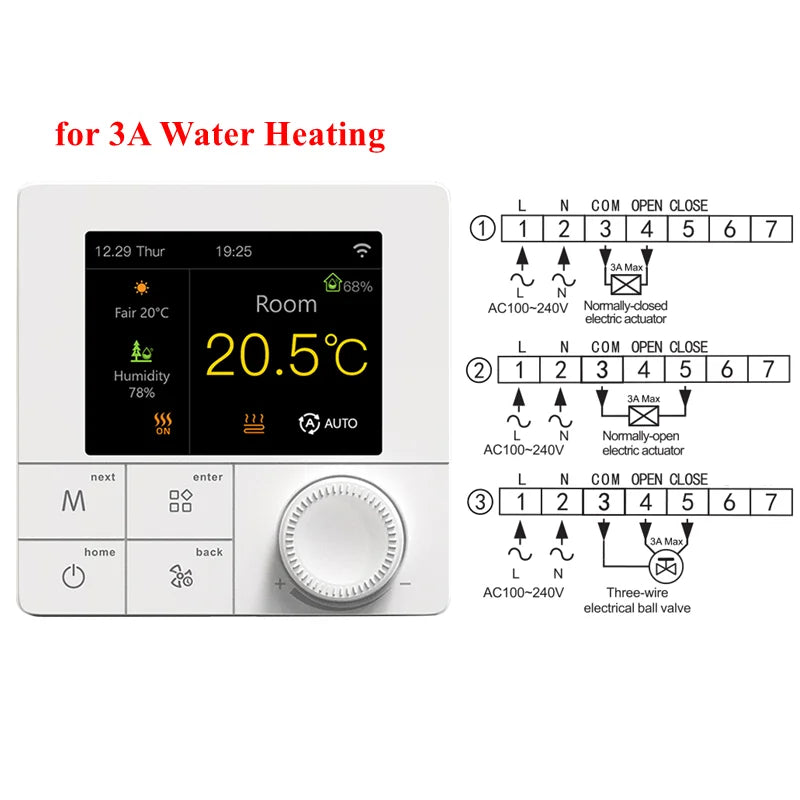

3A Water:for water floor heating, 3A, for controlling normally closed (NC)/normally open (NO) electric heating actuators, valves and pumps, etc.

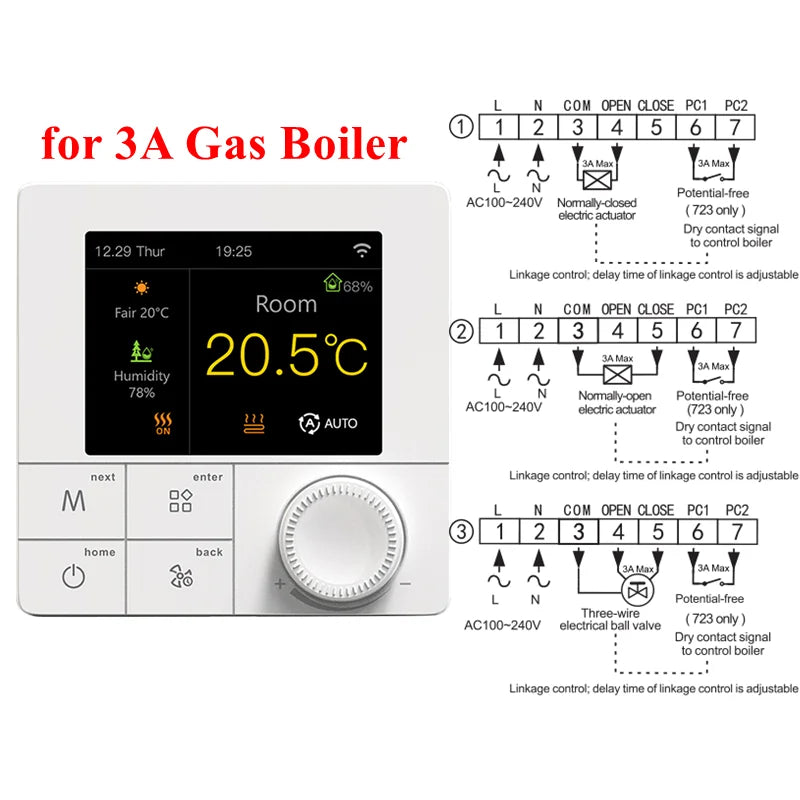

3A Water gas boiler:for gas boiler heating, 3A, for controlling boilers controlled by dry contact signals.

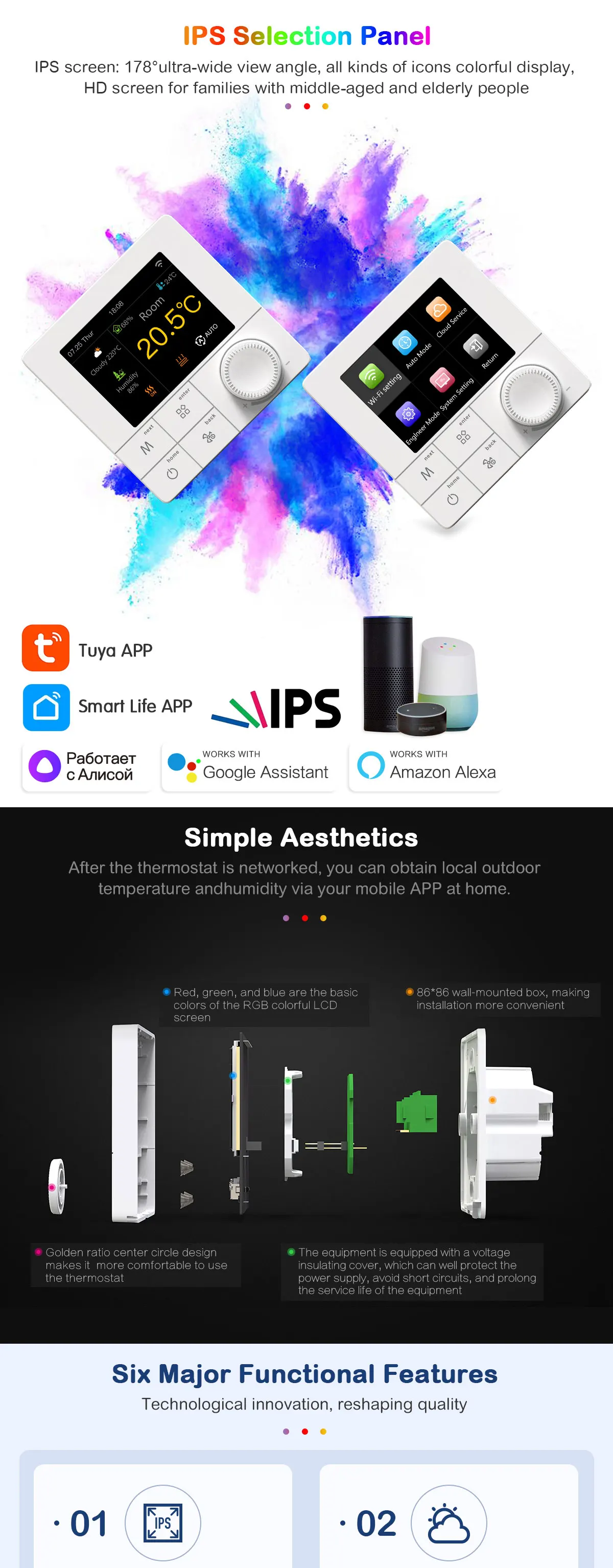

IPS ultra-clear screen, 178° ultra-wide viewing angle, different colors and different icons, no matter which angle to see the intuitive restore the state of the thermostat, while the ordinary screen can only be operated at close range

Extremely easy to use:

360° knob and sensitive capacitive touch buttons; simple wiring, wiring operation instructions provided, dedicated to creating a simple smart thermostat

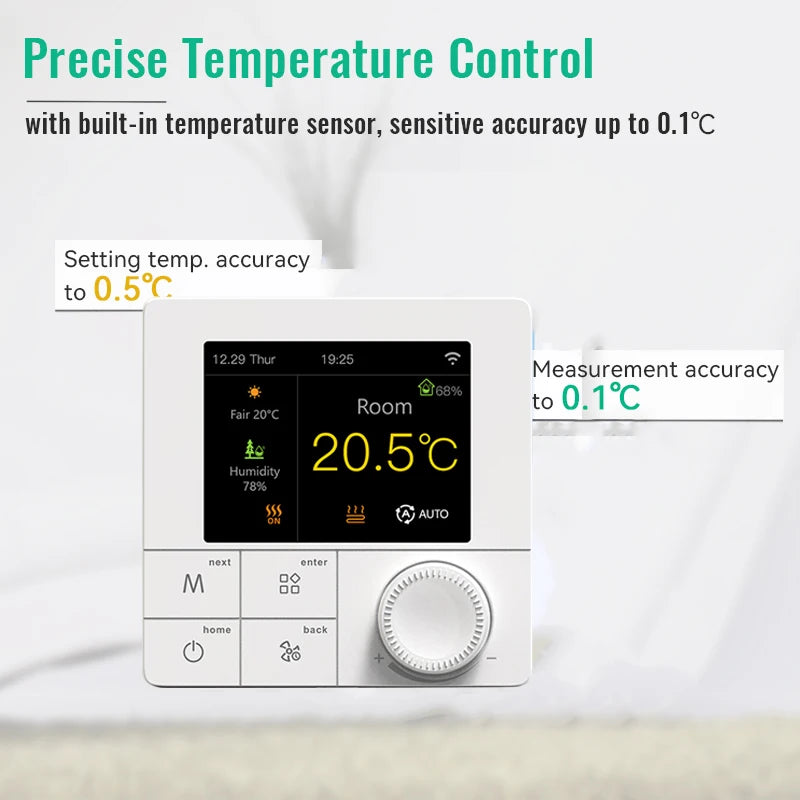

Temperature precision:

built-in sensor + external sensor, sensitive perception of the ambient temperature and the floor temperature. Automatic temperature acquisition, accuracy 0.1℃

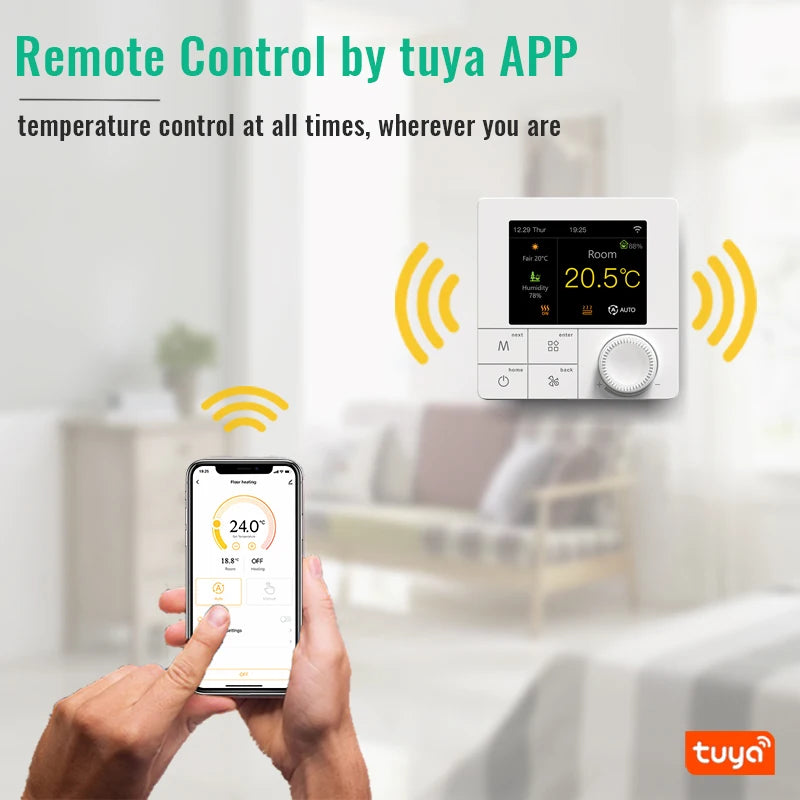

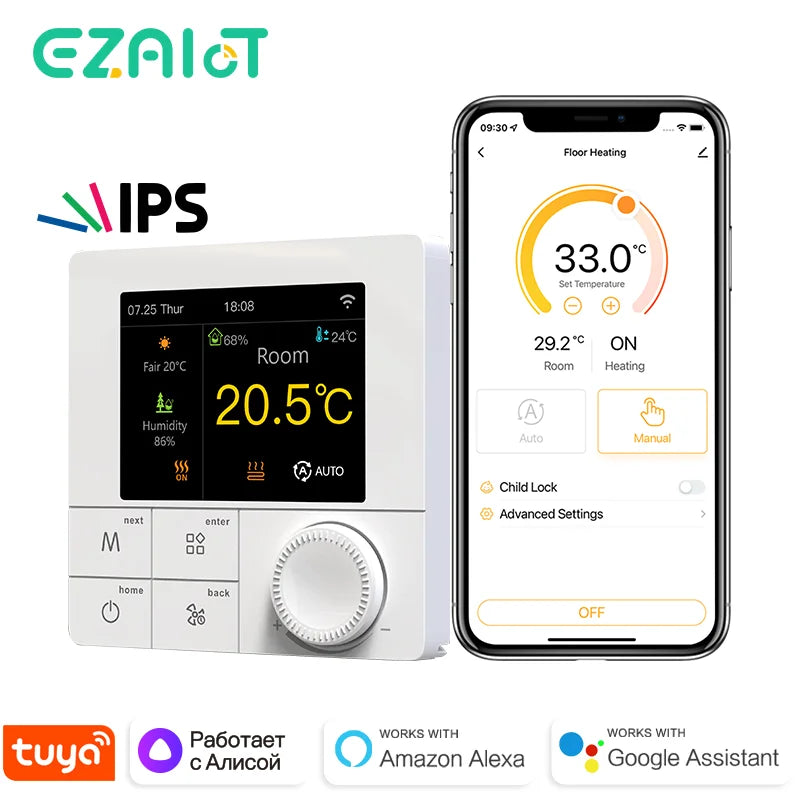

APP intelligent control:

wherever you are, you can control the device remotely through the Tuya Smart / Smart Life App

Voice control:

compatible with Yandex Alice, Amazon Alexa, Google home

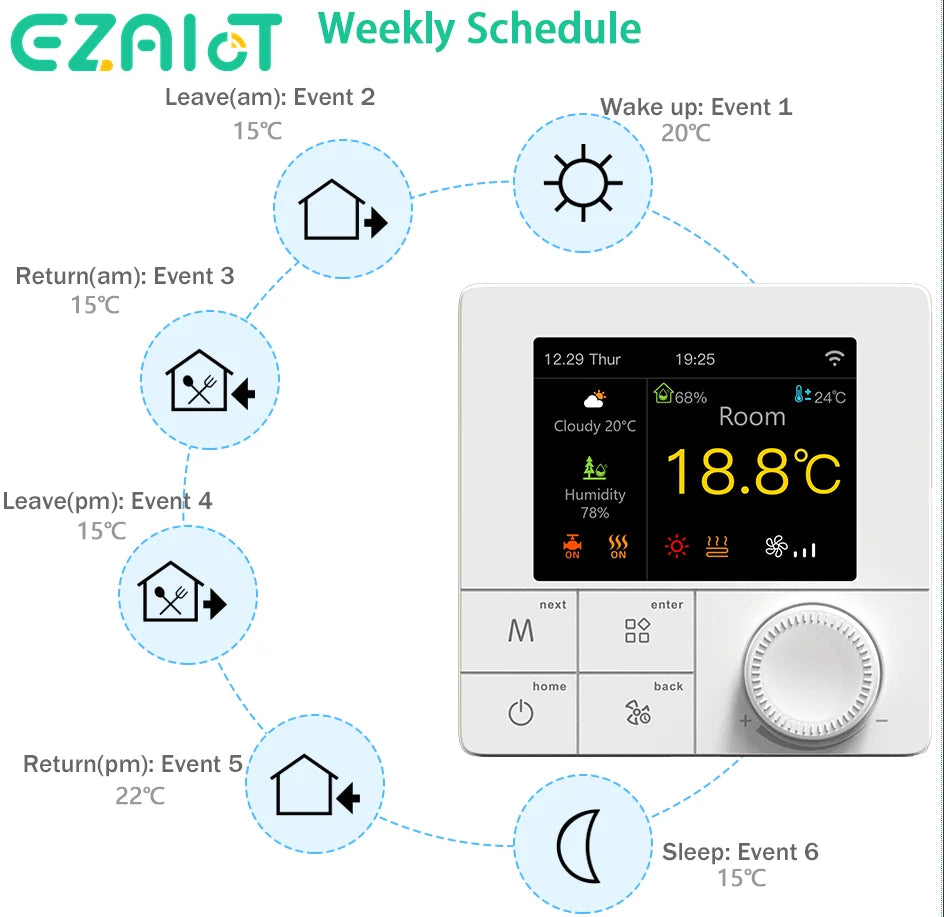

Weekly programming:

5+2 or 6+1 or 7 days six time periods personalized settings

Weather forecast:

real-time display of weather climate, real-time temperature and humidity after networking

Power-off memory:

no need to worry about power failure, the device saves all the data in real time, when the power is on again, no need to reset

Child lock function:

locked to prevent children from accidentally operating the device

Device sharing function:

share the device to your family, control the temperature at home together through App

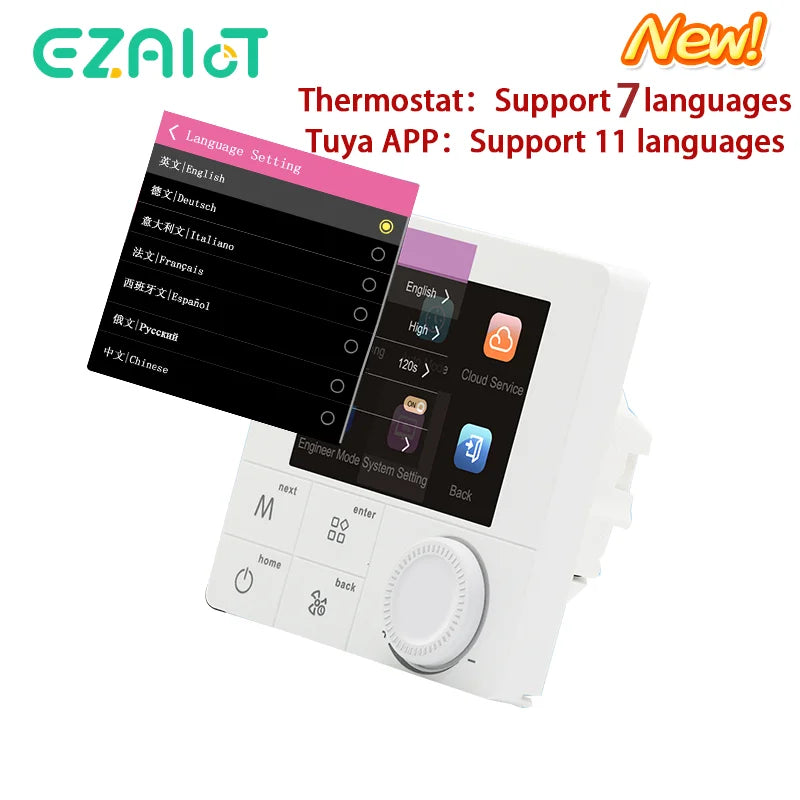

Device multilingual:

supports switching between multiple languages, Chinese, English, Italian, Russian, German, French, Spanish

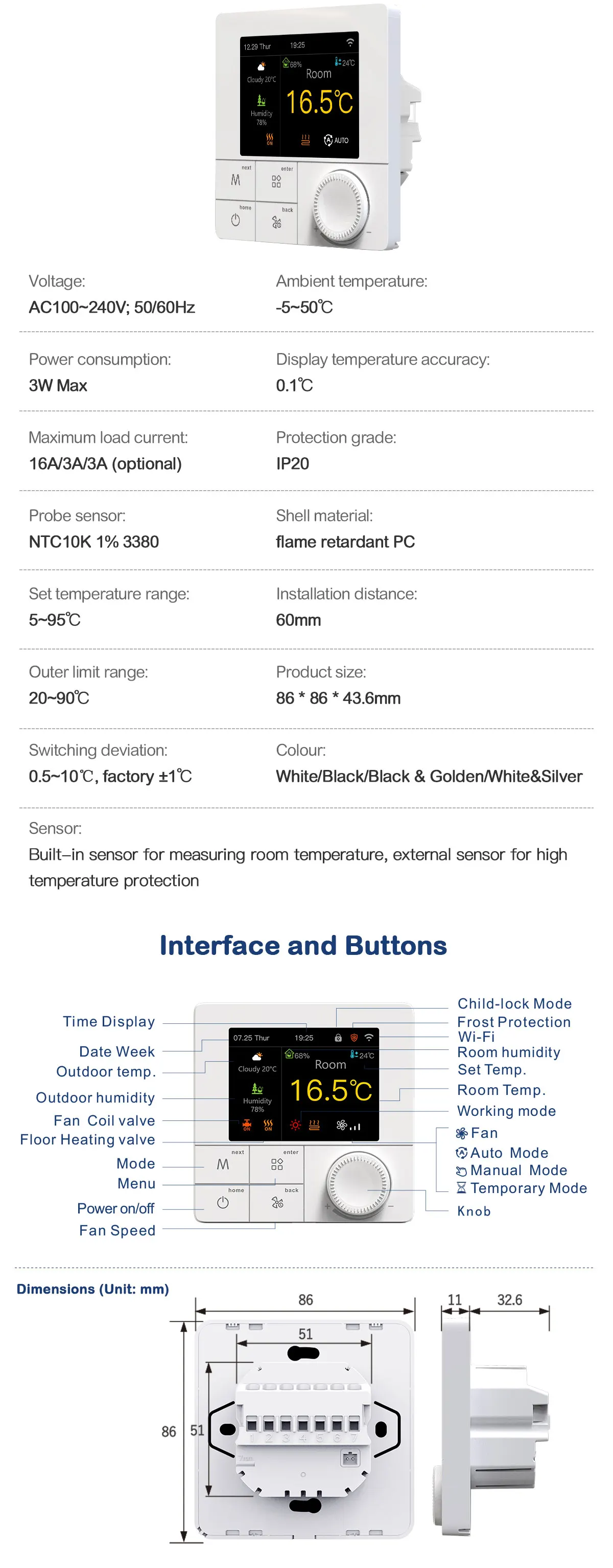

Technical Parameters

Voltage: AC100~240V;50/60Hz

Power consumption: 3W Max

Maximum load current: 16A/3A/3A (optional)

Probe sensor: NTC10K 1% 3380

Set temperature range: 5~95℃

Outer limit range: 20~90℃

Switching deviation: 0.5~10℃, factory ±1℃

Ambient temperature: -5~50℃

Display temperature accuracy: 0.1℃

Protection grade: IP20

Shell material: flame retardant PC

Product List

1pcs*Thermostat

1pcs* Device Operation Manual

1pcs*networking operation manual

2pcs*screws

1pcs*floor sensor (only for electric floor heating)
